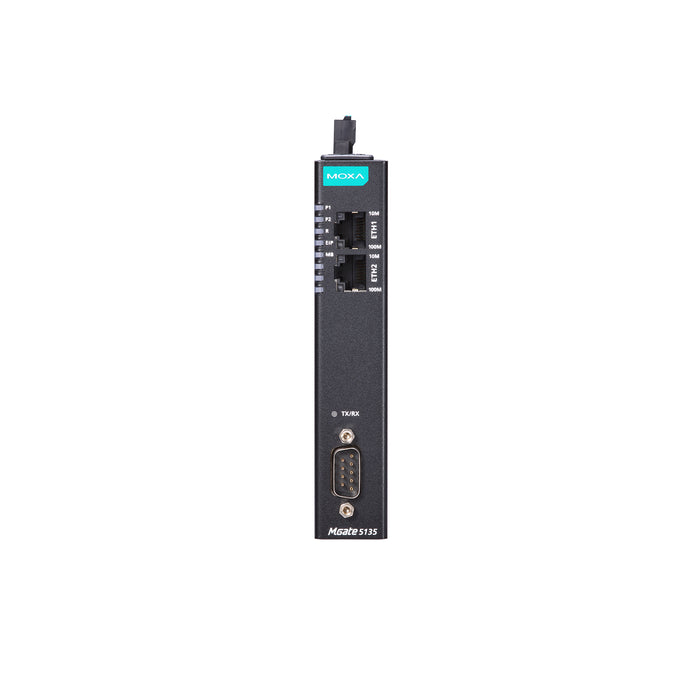

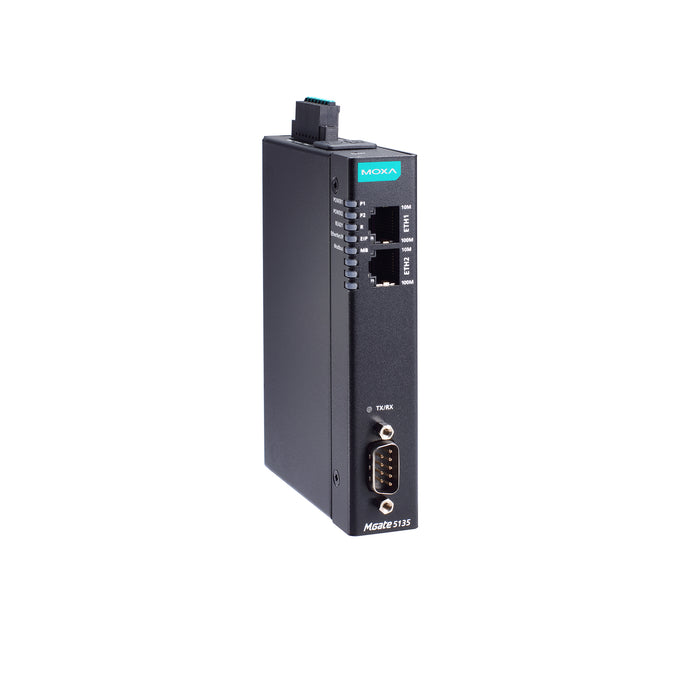

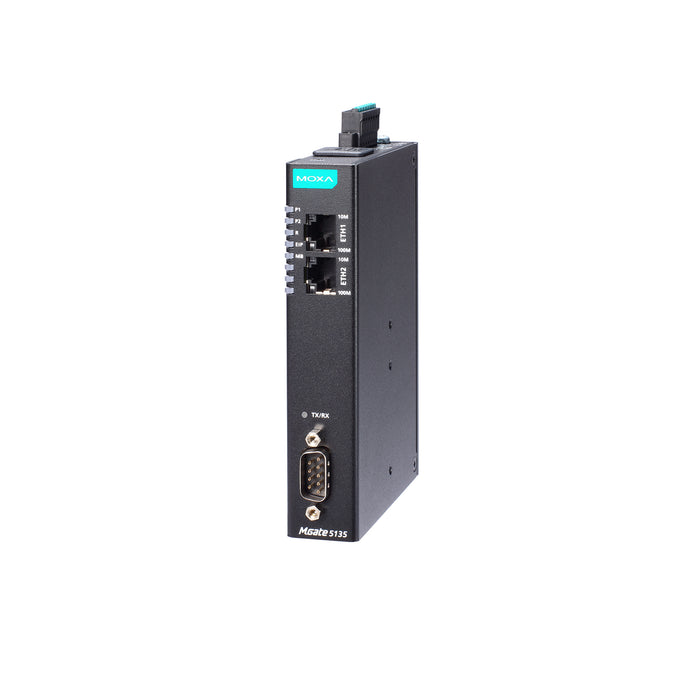

MGate 5135-T

Ціна за запитом
1-port Modbus RTU/ASCII/TCP-to-EtherNet/IP gateway, 0 to +60C operating temperature

Ethernet

Total Ethernet 2
10/100 Mbit/s 2

Interfaces

COM Total 1
RS-232/422/485 1
Isolation of COM Ports 2 kV (RS-232/422/485)

Supported Protocols

Industrial Protocols EtherNet/IP adapter, Modbus TCP server, Modbus TCP client, Modbus RTU slave, Modbus RTU master
Managment Protocols SMTP, SNMPv1/v2c/v3, HTTP, UDP, DNS, ARP, DHCP Client, TCP/IP, NTP Client, SNMP Trap
Security Protocols HTTPS

LED / Controls

Setup of Operation Mode Web-interface

System Power Input

Input Voltage DC Min 12 V
Input Voltage DC Max 48 V
Power Supply Reserve input Voltage DC Min 12 V
Power Supply Reserve input Voltage DC Max 48 V

Operating Conditions

Operating Temperature Min -40 °C
Operating Temperature Max 60 °C

Construction

Construction Chassis Metal Chassis
Mounting Configuration Wall, DIN-Rail mount
Protection Level of Chassis IP30

Dimensions and weight

Width 90 mm
Depth 25 mm
Height 130 mm

Standards and Certifications

Freefall IEC 60068-2-31
Safety EN 60950-1, UL 61010-2-201
Vibration And Shock IEC 60068-2-6, IEC 60068-2-64
