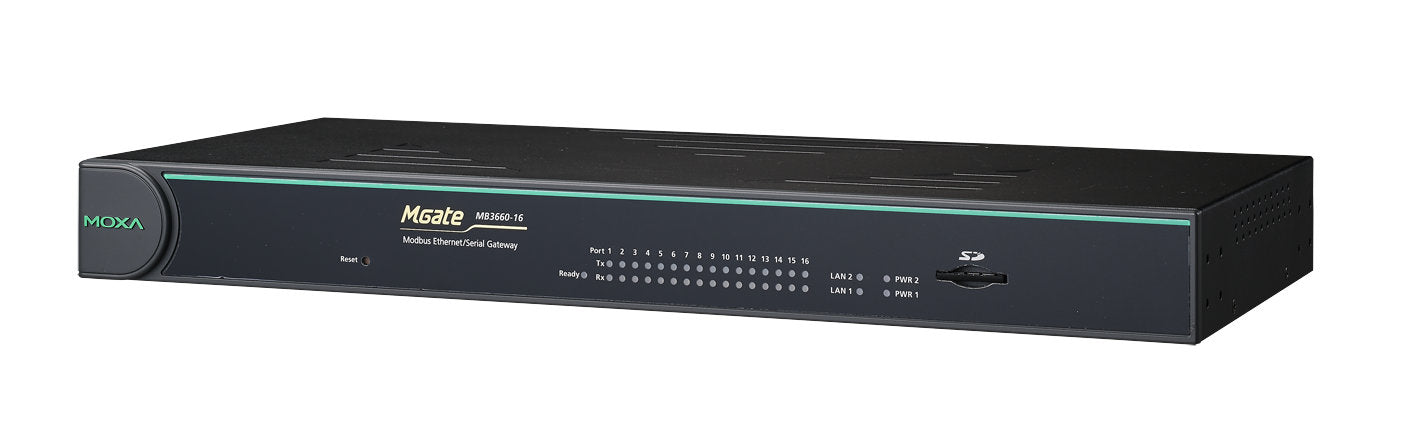

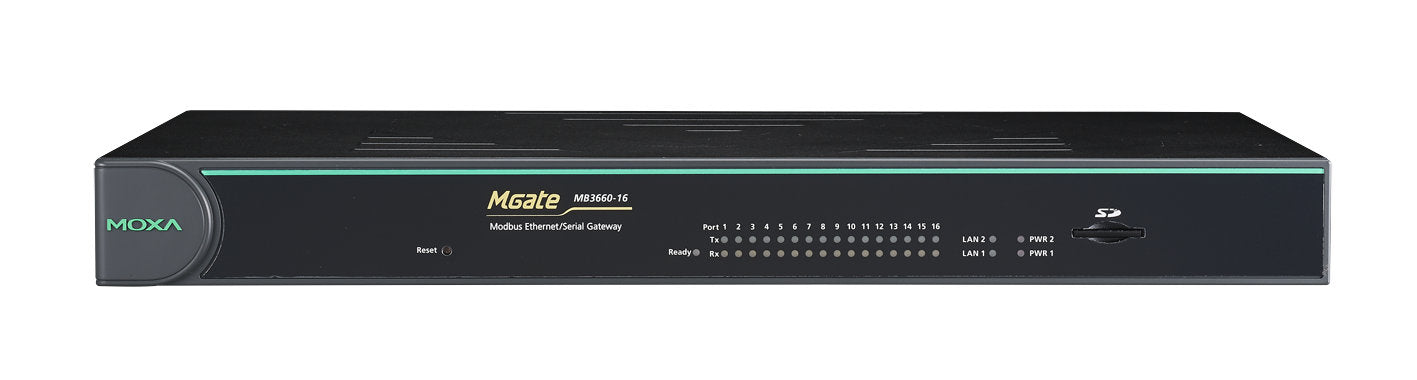

MGate MB3660-16-2AC

Ціна за запитом
16 ports Modbus gateway, dual AC power input

Ethernet

Total Ethernet 2
10/100 Mbit/s 2
Type 10/100 Mbit/s 2xRJ-45

Interfaces

COM Total 16
RS-232/422/485 16

Digital Output

Total channels of digital output 1
Type Signal Relay
Contact rating of relay (Form A) 2A@30V DC

Supported Protocols

Industrial Protocols Modbus TCP server, Modbus TCP client, Modbus RTU slave, Modbus RTU master, Modbus ASCII slave, Modbus ASCII master, Modbus TCP
Managment Protocols SMTP, SNMPv1/v2c/v3, HTTP, Telnet, UDP, DNS, NTP, ARP, DHCP Client, TCP/IP
Security Protocols RADIUS

LED / Controls

LED LED Bar
Setup of Operation Mode Telnet, Console Port, Web-interface

Connectors

Connectors Console Port RS-232 (RJ-45), SD card slot

System Power Input

Input Voltage AC Min 100 V
Input Voltage AC Max 240 V
Power Supply Reserve input Voltage AC Min 100 V
Power Supply Reserve input Voltage AC Max 240 V

Operating Conditions

Operating Temperature Min 0 °C
Operating Temperature Max 60 °C

Construction

Construction Chassis Metal Chassis
Mounting Configuration 19" Rackmount
Protection Level of Chassis IP30

Dimensions and weight

Width 440 mm
Depth 198 mm
Height 45 mm

Standards and Certifications

Freefall IEC 60068-2-32
Safety UL 60950-1, EN 60950-1
Vibration And Shock IEC 60068-2-27, IEC 60068-2-64, IEC 61373, IEC 60870
