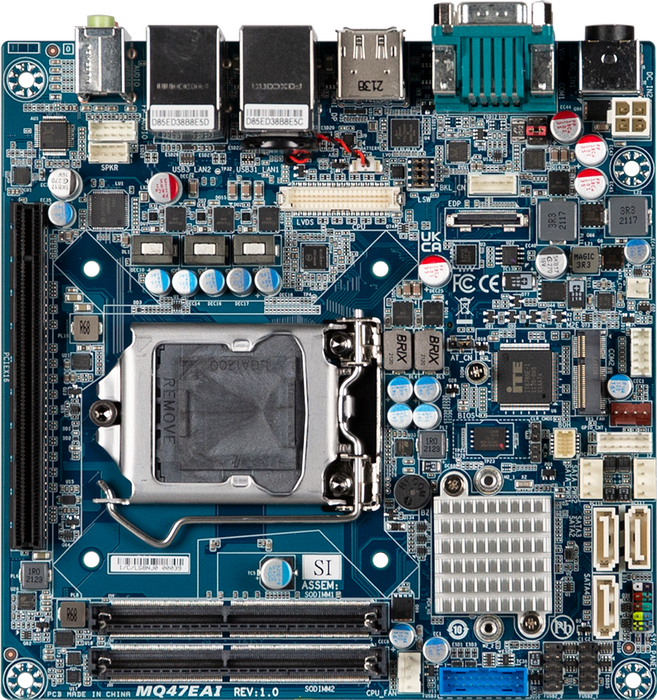

System Architecture | |
| Form Factor | Mini-ITX |
CPU | |
| СPU Generation/Family | Comet Lake |
| CPU Support Type | Core i3, Core i5, Core i7, Core i9, Pentium, Celeron |
| Socket | LGA1200 |
Chipset | |
| Chipset | Intel H420E |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM 260-pin |
| ECC | No |
| Maximum Memory | 64 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
| Interfaces | DisplayPort, LVDS, HDMI, VGA, eDP |
Ethernet | |
| Controller Type | Intel i211-AT 10/100/1000 Mbps, Intel i219-LM |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| USB Total | 10 |
| USB 2.0 | 4 |
| USB v3.x | 6 |
Digital Input-Output | |
| Channels of DIO | 8 |
Audio | |
| Audio Controller | Realtek ALC897 |
Drive interfaces | |
| SATA 3 | 3 |
| RAID Levels | 0, 1, 5, 10 |
| M.2 | 1 |
Extension Slots | |
| Total | 3 |
| PCI Express x16 | 1 |
| M.2 | 2 |
| M.2 Form Factor | 2280 M, 2242 M, 2230 E |
Connectors | |

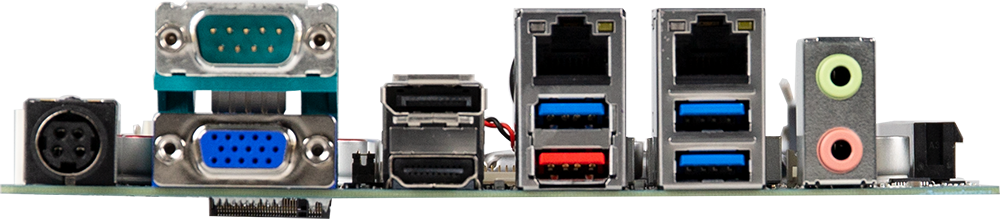

| Connectors | 4-pin ATX, DB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, Display Port |
Dimensions and weight | |
| Width | 170 mm |
| Length | 170 mm |
Operating Conditions | |
| Operating Temperature | 0...60 °C |
| Humidity | 0-95% |
Standards and Certifications | |
| Certifications | CE |
