System Architecture | |
| Form Factor | Micro ATX |
CPU | |
| СPU Generation/Family | Alder Lake, Raptor Lake |
| CPU Support Type | Core i3, Core i5, Core i7, Core i9 |
| Socket | LGA1700 |
Chipset | |
| Chipset | Intel H610E |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xDIMM |
| Maximum Memory | 64 GB |
Graphic | |
| Graphic Controller | Integrated in Chipset |
| Interfaces | VGA, DVI-D, DisplayPort |
Ethernet | |
| Controller Type | Intel i225V, Intel i210-AT |
| Total Ethernet | 3 |
| 10/100/1000 Mbit/s | 1 |
| 2,5 Gbit/s | 2 |
Interfaces | |
| COM Total | 6 |
| RS-232 | 4 |
| RS-232/422 | 1 |
| RS-232/422/485 | 1 |
| USB Total | 13 |
| USB 2.0 | 7 |
| USB v3.x | 6 |
Drive interfaces | |
| SATA 3 | 3 |
| M.2 | 1 |
Extension Slots | |
| Total | 4 |
| PCI Express x16 | 1 |
| PCI Express x4 | 2 |
| PCI | 1 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |
| Internal Ports | 24-pin ATX, 4-pin ATX, 8-pin ATX, 3xSATA 3, 4x10-pin RS-232, 1x4-pin RS-422/485, 1x14-pin RS-232/422/485, 4x4-pin USB 2.0, 10-pin DIO |

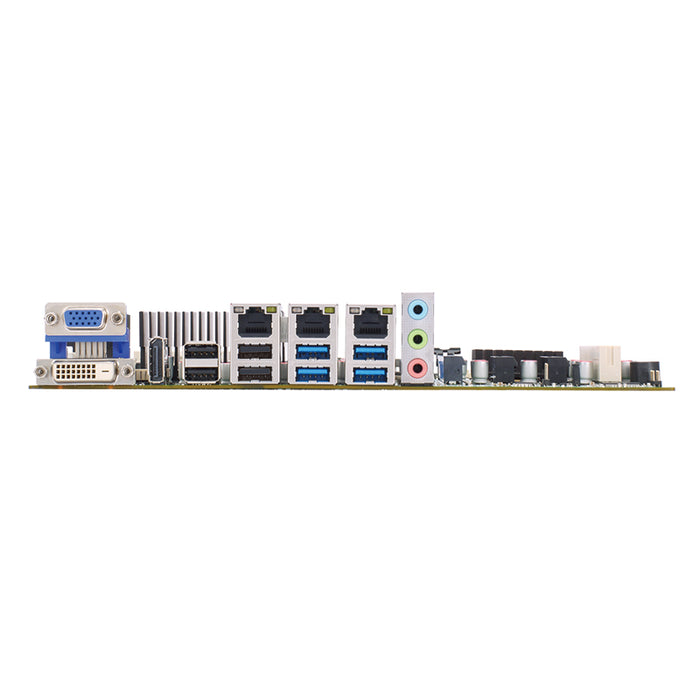

| Connectors | DB15 VGA, DVI-D, Display Port, 8xUSB, 3xRJ45 Ethernet, Audio (in/out/Mic) |
Software | |
| Operating System Compatibility | Windows 10, Windows 11 |
Dimensions and weight | |
| Width | 244 mm |
| Length | 244 mm |
Operating Conditions | |
| Operating Temperature | 0...60 °C |
| Humidity | 10-95% |
