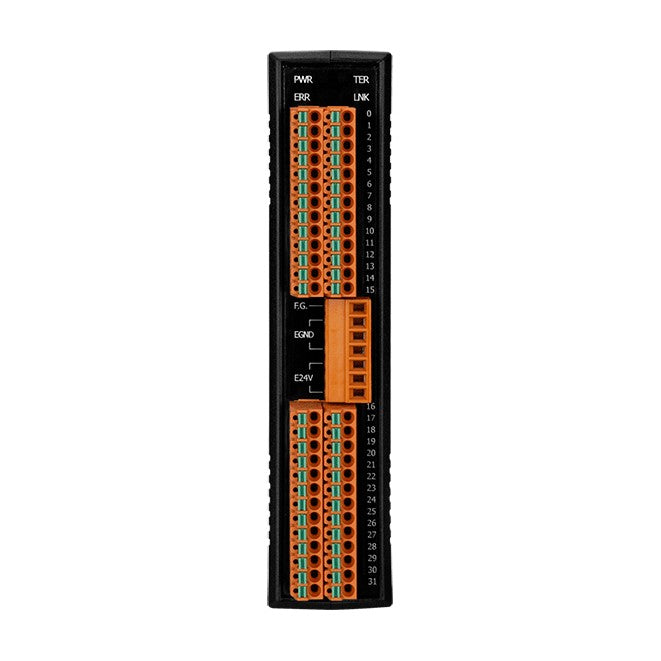

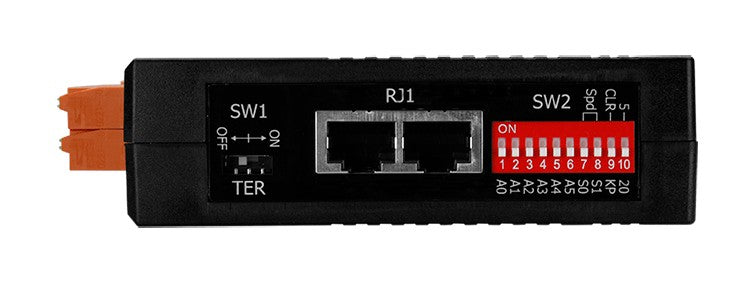

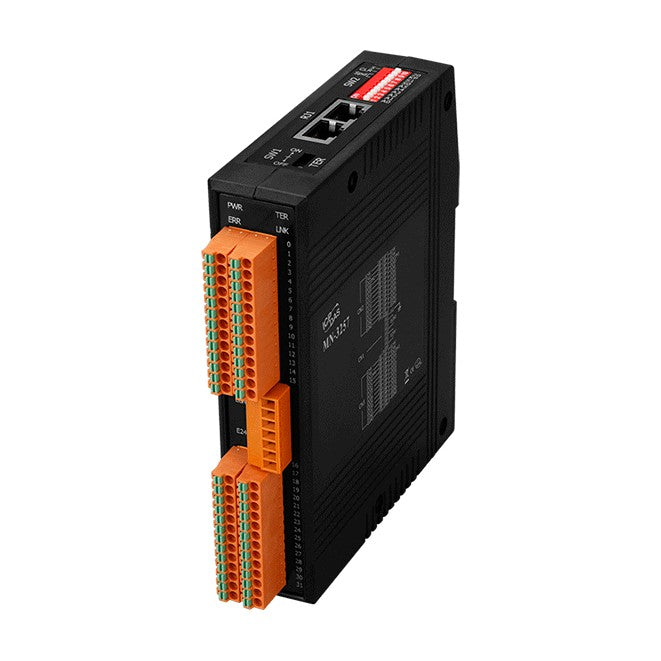

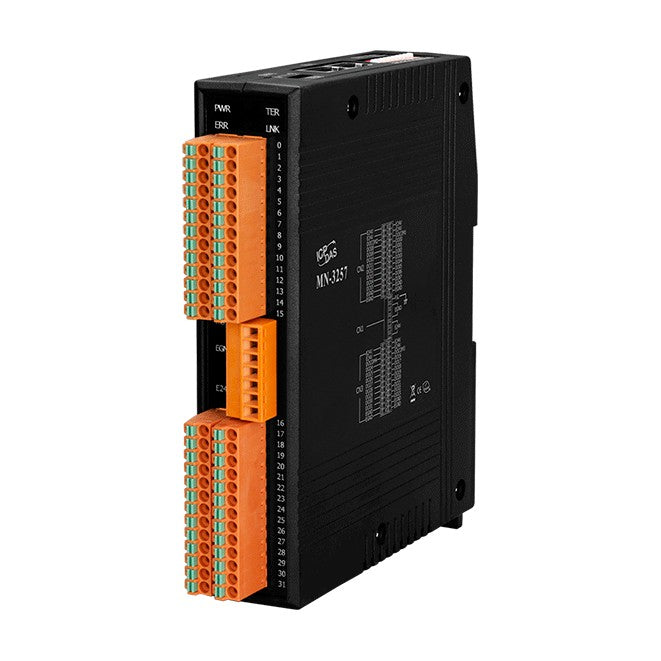

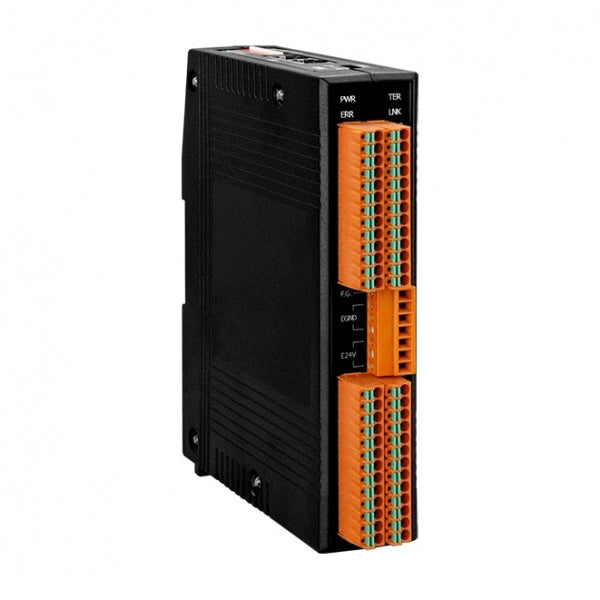

MN-3257

Name: MN-3257
Brand: ICP DAS
SKU: 06626300
Availability: InStock

ICP DAS

Ціна за запитом

Distributed Motionnet 32-ch Isolated DO Module with RJ-45 Connector (RoHS)

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	DIN-Rail mount
Supported Protocols
Industrial Protocols	Motionnet slave
Digital Output
Total channels of digital output	32
Type	Open collector
Sink/Source	Sink
Output voltage	0~30 V
Max. load current	200 mA
Connectors
Connectors	2xRJ45, Screw Terminal
System Power Input
Input Voltage DC	24...24 V
Dimensions and weight
Width	31 mm
Depth	126.6 mm
Height	140 mm
Operating Conditions
Operating Temperature	0...60 °C

Документація
