Construction |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | Panel |
| Protection Level of Front Side (Panel) | IP66 |
| Protection Level of Chassis | IP66 |
| Type | Fanless |
Display |
| Diagonal | 10 " |
| Maximum resolution | 1024x768 Dots |
| Aspect Ratio | 4:3 |
| Brightness | 1000 Cd/m2 |
| Contrast Ratio | 1000~1 |
Touch Screen |
| Touch Screen Type | Capacitive |
CPU |
| Processor Installed | Intel Atom E3845 |
| Max CPU frequency | 1.91 GHz |
Memory |
| Form-factor | DDR3, DDR3L |
| Socket Type | 1xSODIMM |
| Default on Board Memory | 4 GB |
| Assembly | Removable |
Graphic |
| Graphic Controller | Integrated in CPU |
Ethernet |
| Total Ethernet | 2 |
| 10/100 Mbit/s | 2 |

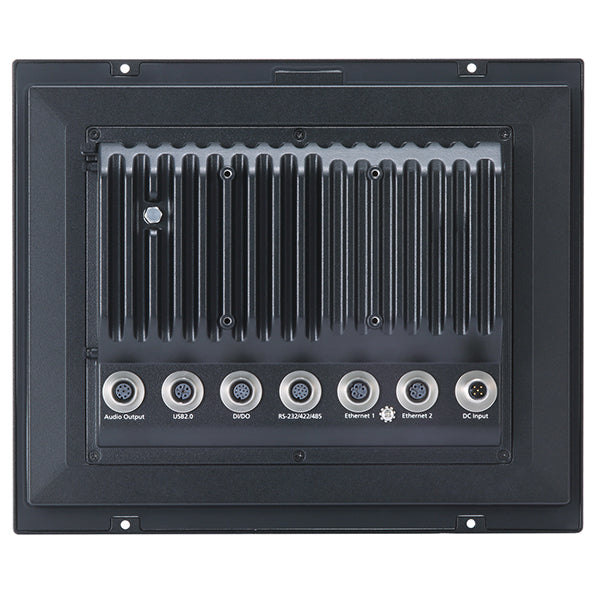

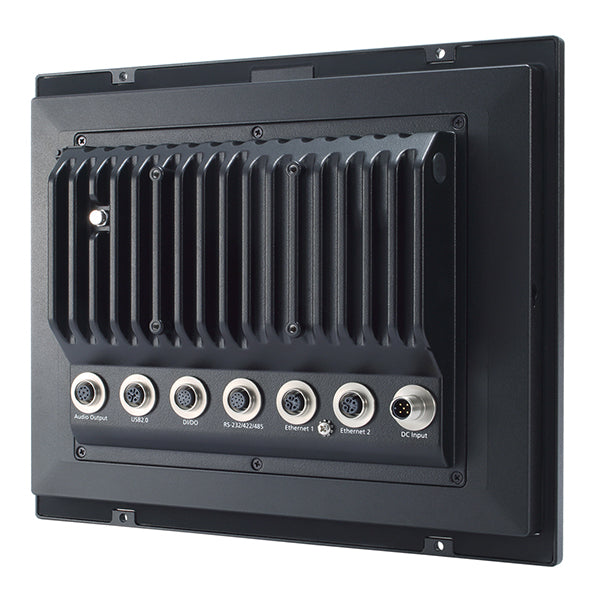

Interfaces |
| COM Total | 1 |
| RS-232/422/485 | 1 |
| USB Total | 1 |
| USB 2.0 | 1 |
Drive interfaces |
| CFast Slots | 1 |
| SD Slots | 1 |
Extension Slots |
| Total | 1 |
| Mini-PCIe/Mini Card | 1 |
System Power Input |
| Input Voltage DC | 24...110 V |
Software |
| Operating System Compatibility | Windows Embedded Standard 7, Linux OS, Windows 10 |
Dimensions and weight |
| Width | 297 mm |
| Height | 248 mm |
| Depth | 59 mm |
Operating Conditions |
| Operating Temperature | -40...70 °C |
Standards and Certifications |
| EMI | FCC Part 15 Subpart B Class A, CISPR 32 |
| EMS | IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55032, EN 55035 |
| Rolling Stock | EN 50155 |
| Safety | IEC 60950-1, UL 62368-1, IEC 62368-1 |
