Construction | |
| Construction Chassis | Plastic Chassis |
| Mounting Configuration | Desktop, Panel, Wall, Wall VESA 75, Arm |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 10.1 " |
| Maximum resolution | 1280x800 Dots |
| Aspect Ratio | 16:9 |
| Brightness | 350 Cd/m2 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| СPU Generation/Family | Braswell |
| Processor Installed | Intel Celeron N3060 |
| Max CPU frequency | 2.48 GHz |
Chipset | |
| Chipset | Intel Braswell SoC |
Memory | |
| Form-factor | DDR3L |
| Socket Type | 1xSODIMM |
| Maximum Memory | 8 GB |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| USB Total | 4 |
| USB 2.0 | 2 |
| USB v3.x | 2 |
Drive interfaces | |
| mSATA | 1 |
Extension Slots | |
| Mini-PCIe/Mini Card | 3 |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off, KeyPad, AT/ATX Switch |
Connectors | |

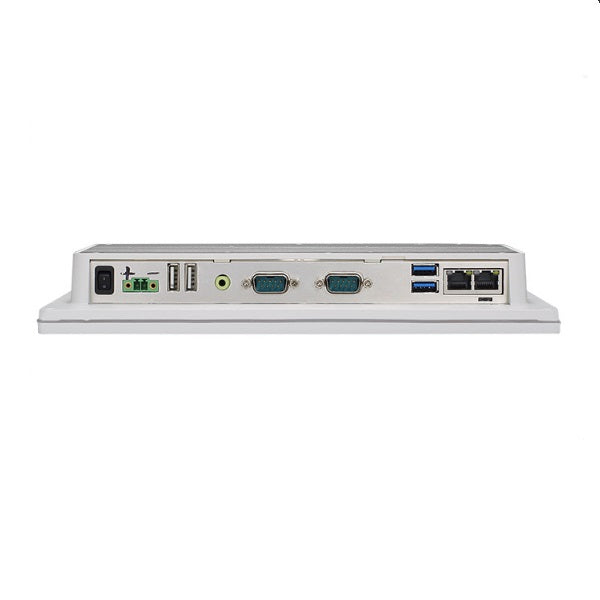

| Connectors | 2xRJ45 Ethernet, 4xUSB, Line Out, Console Port RS-232 (DB9M) |
System Power Input | |
| Input Voltage AC | 100...240 V |
| Power Consumption | 40.32 W |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
| Output Power | 65 W |
Software | |
| Operating System Compatibility | Windows 7, Windows Embedded Standard 7, Windows Embedded Standard 8, Windows 8.1, Windows 10 |
Dimensions and weight | |
| Width | 510 mm |
| Height | 105 mm |
| Depth | 385 mm |
Operating Conditions | |
| Operating Temperature | 0...40 °C |
| Vibration | 2G. 5 ~ 500Hz. random for SSD |
Standards and Certifications | |
| Certifications | CE, FCC |
| Medicine | EN 60601-1 |
