Construction | |

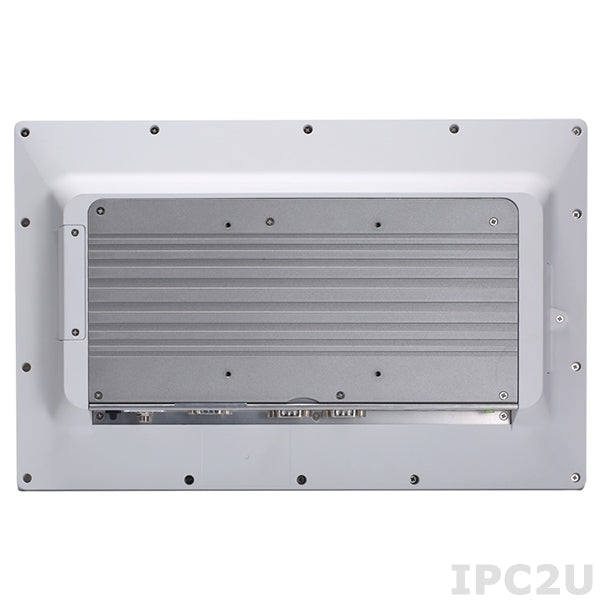

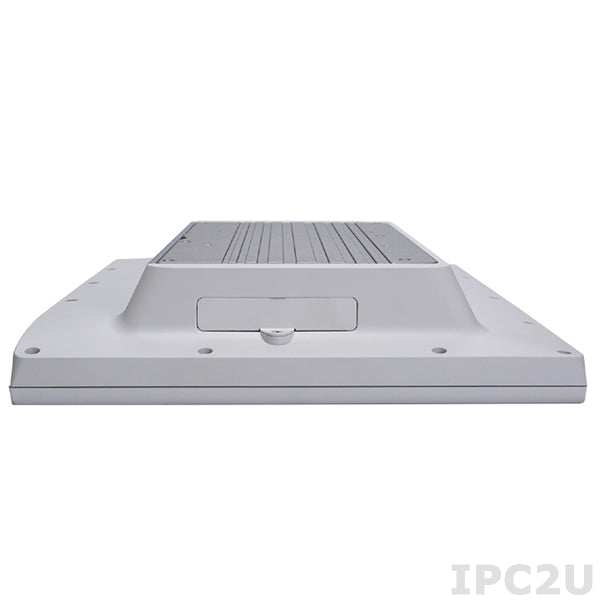

| Construction Chassis | Plastic Chassis with Aluminum Heatsink |
| Mounting Configuration | Desktop, Wall, Wall VESA 100, Arm |
| Protection Level of Front Side (Panel) | IP65 |
| Protection Level of Chassis | IPX1 |
| Type | Fanless |

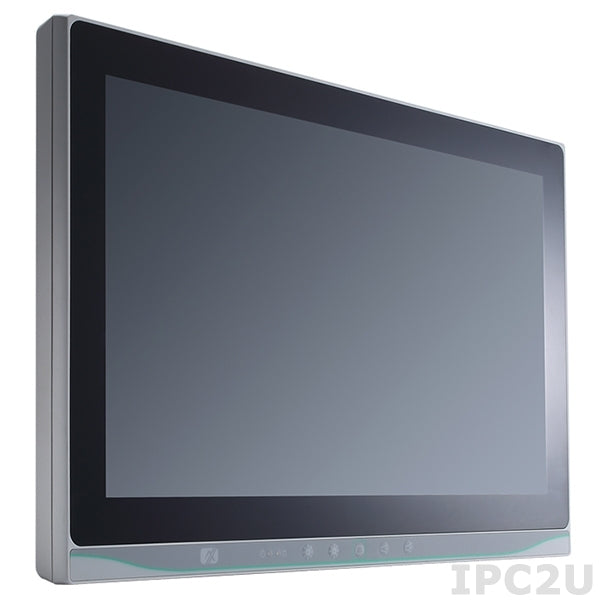

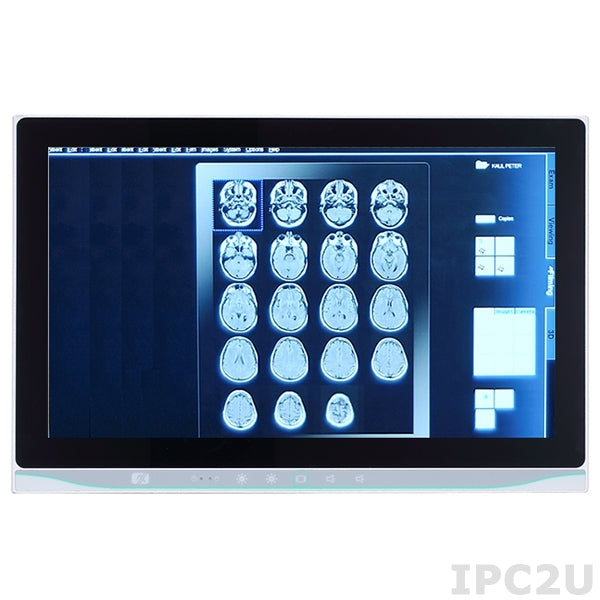

Display | |
| Display Type | LCD TFT |
| Diagonal | 15.6 " |
| Maximum resolution | 1366x768 Dots |
| Brightness | 300 Cd/m2 |
Touch Screen | |
| Touch Screen Type | Resistive |
CPU | |
| СPU Generation/Family | Bay Trail |
| Processor Installed | Intel Celeron J1900 |
| Max CPU frequency | 2.42 GHz |
Chipset | |
| Chipset | Intel Bay Trail-I SoC |
Memory | |
| Form-factor | DDR3L |
| Socket Type | 1xSODIMM |
| Maximum Memory | 8 GB |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Intel i210-IT |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 3 |
| RS-232 | 1 |
| RS-232/422/485 | 2 |
| USB Total | 2 |
| USB v3.x | 2 |
Drive interfaces | |
| mSATA | 1 |
| CFast Slots | 1 |
Extension Slots | |
| Total | 2 |
| Mini-PCIe/Mini Card | 2 |
LED / Controls | |
| LED | 1xHDD LED, Power LED |
| Controls | On/Off, Control Buttons |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

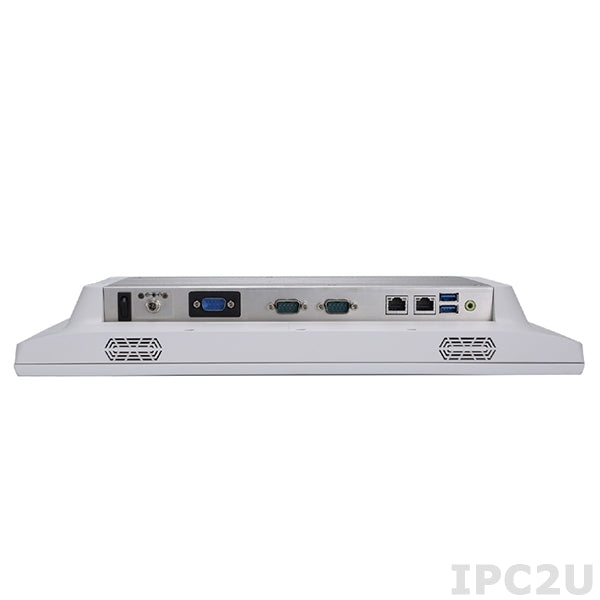

| Connectors | 3xDB9, 2xRJ45 Ethernet, 2xUSB, Line Out, DC Input |
System Power Input | |
| Input Voltage DC | 9...36 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
| Output Power | 60 W |
Software | |
| Operating System Compatibility | Windows 7, Windows Embedded Standard 7, Windows Embedded Standard 8, Windows 8.1 |
Dimensions and weight | |
| Width | 394.2 mm |
| Height | 257.2 mm |
| Depth | 57 mm |
Operating Conditions | |
| Operating Temperature | 0...40 °C |
| Vibration | 2 G. 10 ~ 500Hz. random for CFast |
Standards and Certifications | |
| Certifications | CE, FCC Class B |
| Medicine | EN 60601-1 |
