Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Built-in, Desktop, Wall |
| Type | Fanless |
CPU | |
| Processor Installed | Intel Core i3-6100U |
| Socket | CPU onboard |
| Max CPU frequency | 2.3 GHz |
Chipset | |
| Chipset | Intel Skylake SoC |
Memory | |
| Form-factor | DDR3L |
| Socket Type | 2xSODIMM |
| Default on Board Memory | 2 GB |
| Maximum Memory | 16 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 8 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 3 |
| RS-232 | 2 |
| RS-232/422/485 | 1 |
| USB Total | 4 |
| USB v3.x | 4 |
Industrial Interfaces | |
| CAN Port | 1 |
Audio | |
| Audio Controller | Intel HD Audio |
Drive interfaces | |
| CFast Slots | 1 |
Storage Cage | |
| Number Of Cage External | 2 |
| 2.5" Cage External | 2 |
Extension Slots | |
| SIM Card slots | 3 |
Additional Functions | |
| GPS | GPS |
Connectors | |

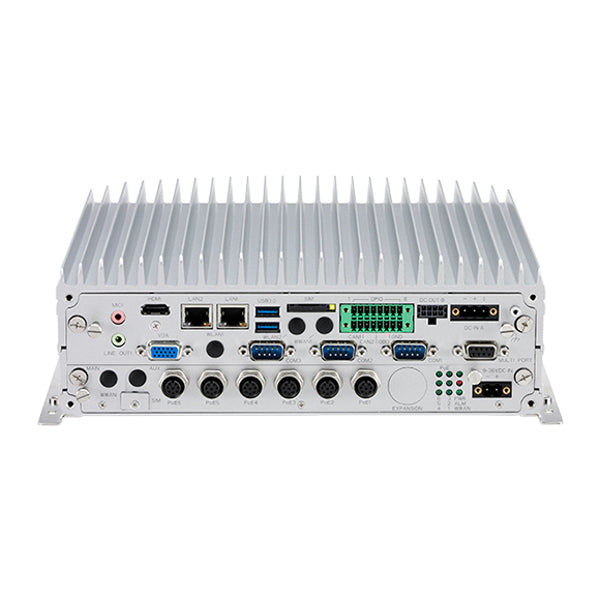

| Connectors | 3xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, 12V DC Output, GPIO (terminal block), 2xSIM Card Slot |
System Power Input | |
| Input Voltage DC | 9...36 V |
| Power Consumption | 34 W |
Software | |
| Operating System Compatibility | Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded Standard 8, Linux kernel 3.x, Windows 10 |
Dimensions and weight | |
| Width | 260 mm |
| Height | 91 mm |
| Depth | 196 mm |
Operating Conditions | |
| Operating Temperature | -30...60 °C |
| Vibration | 2g@5~500 Hz |
| Shock | 20g |
Standards and Certifications | |
| Certifications | CE, FCC Class B |
| MIL-STD-810 | MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock |
| Automotive | e13 Mark |
