Construction | |
| Construction Chassis | Aluminium Chassis |

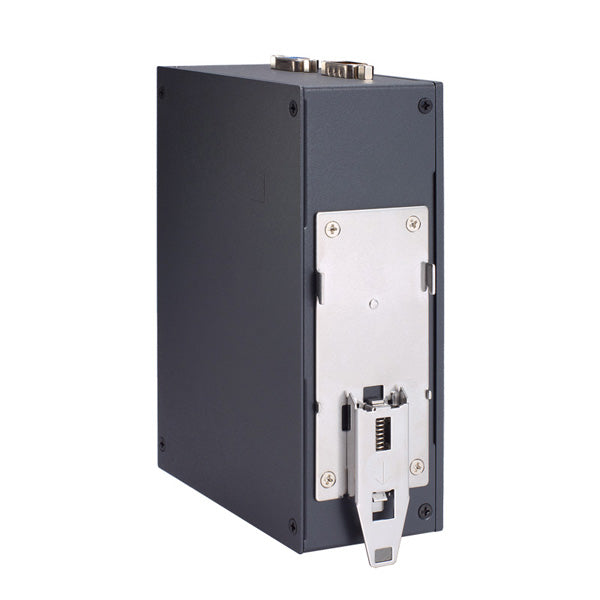

| Mounting Configuration | Built-in, Desktop, DIN-Rail mount |
| Protection Level of Chassis | IP40 |
| Type | Fanless |
CPU | |
| СPU Generation/Family | Apollo Lake |
| Processor Installed | Intel Atom E3940 |
| Socket | CPU onboard |
| Max CPU frequency | 1.8 GHz |
Chipset | |
| Chipset | Intel Atom SoC |
Memory | |
| Form-factor | DDR3L |
| Socket Type | 1xSODIMM |
| ECC | No |
| Maximum Memory | 8 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU, Intel HD Graphics 500 |
Ethernet | |
| Controller Type | Intel i210-AT, Intel i211-AT 10/100/1000 Mbps |
| Total Ethernet | 3 |
Interfaces | |
| COM Total | 1 |
| RS-232/422/485 | 1 |
| USB Total | 2 |
| USB v3.x | 2 |
Digital Input-Output | |
| Channels of DIO | 4 |
Drive interfaces | |
| mSATA | 1 |
Storage Cage | |
| Number Of Cage External | 2 |
| 2.5" Cage Intenal | 2 |
Extension Slots | |
| Total | 1 |
| Mini-PCIe/Mini Card | 1 |
| SIM Card slots | 2 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

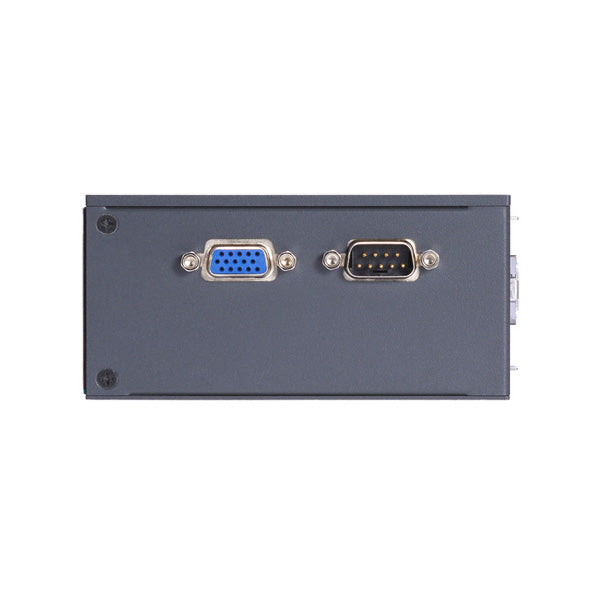

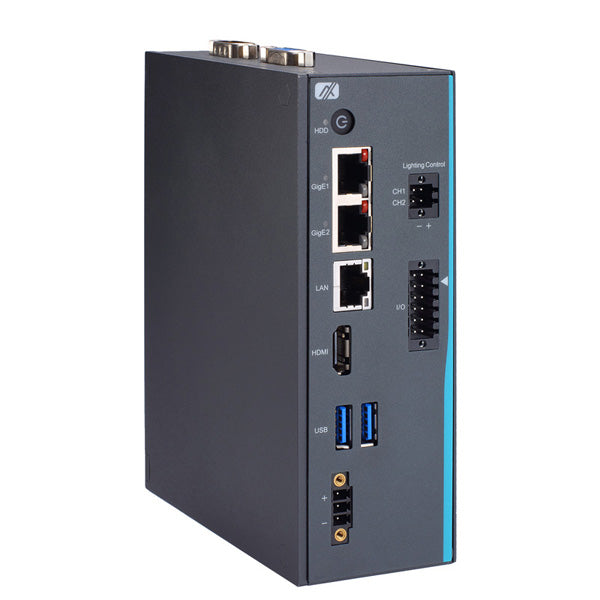

| Connectors | DB9, DB15 VGA, HDMI, 3xRJ45 Ethernet, 2xUSB, DC input (terminal block), 2xDIO (terminal block), Terminal block |
System Power Input | |
| Input Voltage DC | 21.6...26.4 V |
Software | |
| Operating System Compatibility | Linux OS, Windows 10 |
Dimensions and weight | |
| Width | 110 mm |
| Height | 155 mm |
| Depth | 53 mm |
Operating Conditions | |
| Operating Temperature | -10...55 °C |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
