Construction | |
| Construction Chassis | Heavy-Duty Steel Chassis |
| Mounting Configuration | Desktop |
| Height | 1 U |
CPU | |
| СPU Generation/Family | Elkhart Lake |
| Processor Installed | Atom x6425E |
| Socket | CPU onboard |
| Max CPU frequency | 3 GHz |
Chipset | |
| Chipset | Intel Atom SoC |
Memory | |
| Socket Type | 2xSODIMM |
| Maximum Memory | 32 GB |
| Assembly | Removable |
Ethernet | |
| Total Ethernet | 7 |
Interfaces | |
| USB Total | 2 |
| USB 2.0 | 2 |
Drive interfaces | |
| M.2 | 1 |
Extension Slots | |
| Total | 5 |
| M.2 | 3 |
| Mini-PCIe/Mini Card | 2 |
LED / Controls | |
| LED | 1xHDD LED, Power LED, BYPASS LED |
| Controls | On/Off, 1xReset |
Connectors | |

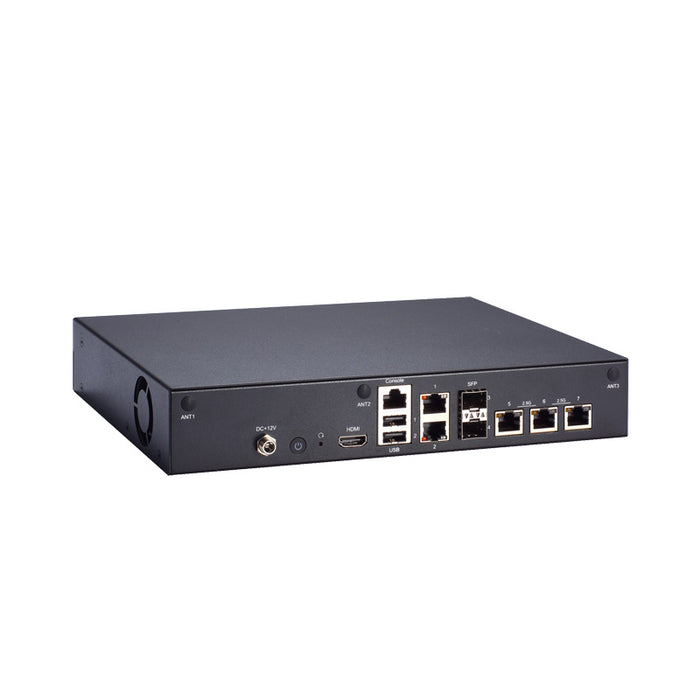

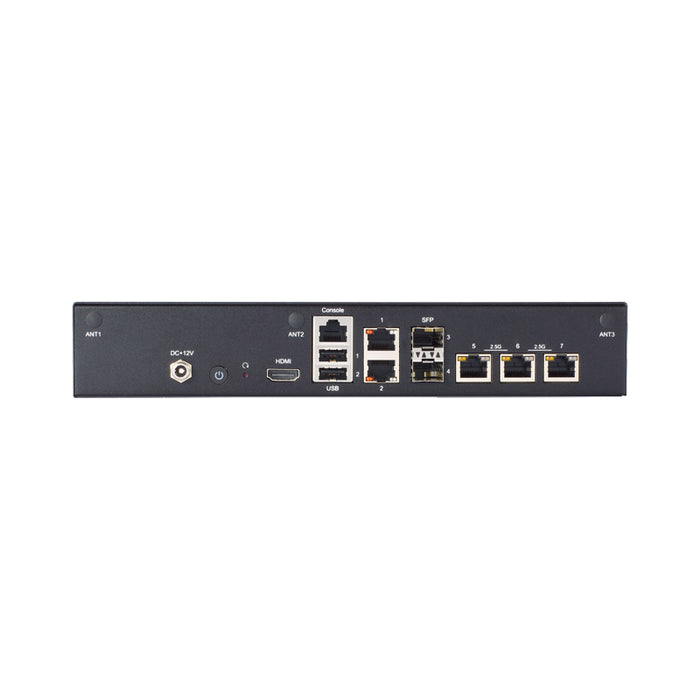

| Connectors | HDMI, 5xRJ45 Ethernet, 2xUSB, DC Input, 2xSFP, RJ45 (Console) |
System Power Input | |
| Input Voltage DC | 12...12 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
| Output Power | 60 W |
Software | |
| Operating System Compatibility | Linux OS |
Dimensions and weight | |
| Width | 257 mm |
| Height | 44 mm |
| Depth | 197 mm |
Operating Conditions | |
| Operating Temperature | 0...40 °C |
Standards and Certifications | |
| Certifications | CE, FCC Class B |
