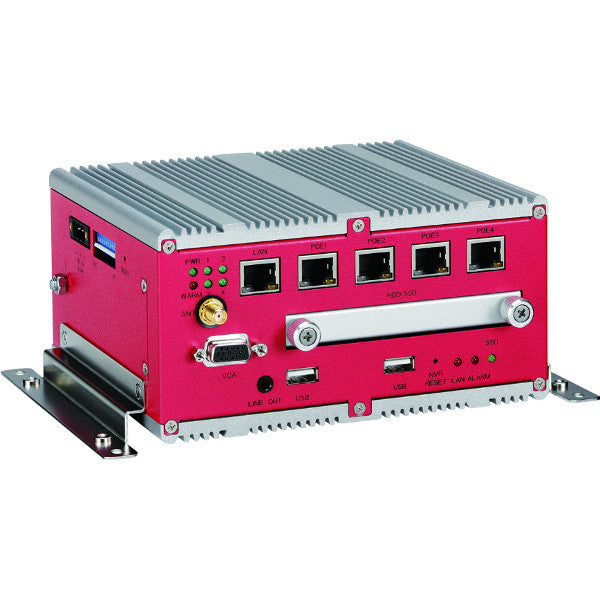

NANO-1190-C4S

Name: NANO-1190-C4S
Brand: NEXCOM
SKU: 56347700
Availability: InStock

NEXCOM

Ціна за запитом

Embedded Server, ARM Cortex A9 CPU, 1GB DDR3L, VGA, 1xGbit LAN, 4xPoE, 2xUSB 2.0, Line-Out, 1 x 2.5" SATA 2.0 SSD, 9...36V DC-In

Специфікація

Specification

Construction
Construction Chassis	Aluminium Chassis
Mounting Configuration	Desktop, Wall
CPU
Processor Installed	ARM Cortex A9
Memory
Form-factor	DDR3L
Default on Board Memory	1 GB
Ethernet
10/100/1000 Mbit/s	1
Interfaces
USB Total	2
USB 2.0	2
Additional Functions
GPS	GPS
Connectors
Connectors	DB15 VGA, 2xUSB, Line Out, 5xRJ45
System Power Input
Input Voltage DC	9...36 V
Software
Operating System Installed	Linux OS
Dimensions and weight
Width	137.6 mm
Height	165 mm
Depth	82.5 mm
Operating Conditions
Operating Temperature	-40...70 °C
Standards and Certifications
Certifications	CE, FCC Class A
Rolling Stock	EN 50155
Automotive	e13 Mark
