System Architecture | |

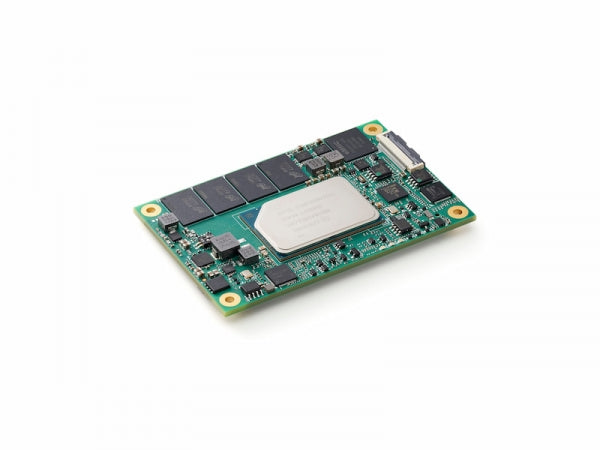

| Form Factor | COM Express Mini |
CPU | |
| СPU Generation/Family | Elkhart Lake |
| Processor Installed | Atom x6200FE |
| Max CPU frequency | 1 GHz |
Memory | |
| Form-factor | DDR4 |
| Socket Type | Soldered |
| Maximum Memory | 16 GB |
| Assembly | Fixed on Board |
Graphic | |
| Graphic Controller | Integrated in CPU |
| Interfaces | DDI, LVDS, eDP |
Ethernet | |
| Total Ethernet | 1 |
| 2,5 Gbit/s | 1 |
Interfaces | |
| USB Total | 8 |
| USB 2.0 | 6 |
| USB v3.x | 2 |
Drive interfaces | |
| SATA 3 | 2 |
Software | |
| Operating System Compatibility | Windows 10, Windows IoT Enterprise 10, Vxworks |
Dimensions and weight | |
| Width | 84 mm |
| Length | 55 mm |
Operating Conditions | |
| Operating Temperature | 0...60 °C |
| Humidity | 0-95% |
