Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Built-in |
| Type | Fan |
CPU | |
| Socket | LGA1151 |
| CPU Support Type | Core i7, Core i5, Core i3 |
Chipset | |
| Chipset | Intel Q370 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| Maximum Memory | 32 GB |
Graphic | |
| Graphic Controller | Intel UHD Graphics 630 |
Ethernet | |
| Total Ethernet | 1 |
| 10/100/1000 Mbit/s | 1 |
Interfaces | |
| USB Total | 3 |
| USB 2.0 | 1 |
| USB v3.x | 2 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Total | 2 |
| M.2 | 2 |
Connectors | |

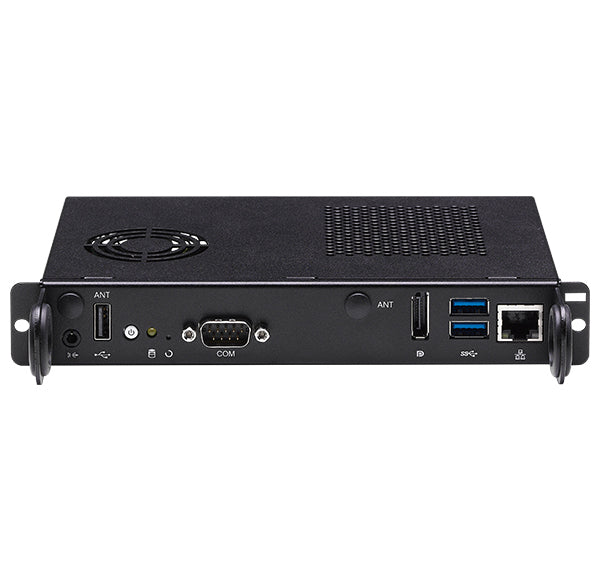

| Connectors | DB9, RJ45 Ethernet, 3xUSB, Line Out, Display Port, JAE TX25A (OPS) |
System Power Input | |
| Input Voltage DC | 12...19 V |
Software | |
| Operating System Compatibility | Windows 10 |
Dimensions and weight | |
| Width | 200 mm |
| Height | 30 mm |
| Depth | 119 mm |
Operating Conditions | |
| Operating Temperature | 0...45 °C |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
