Construction | |
| Construction Chassis | Metal Chassis |
| Type | Fanless |
CPU | |
| СPU Generation/Family | Coffee Lake |
| Socket | LGA1151 |
| CPU Support Type | Core i7, Core i5, Core i3 |
Chipset | |
| Chipset | Intel H310 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| Maximum Memory | 32 GB |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 6 |
| RS-232 | 3 |
| RS-232/422/485 | 3 |
| USB Total | 4 |
| USB v3.x | 4 |
Storage Cage | |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| M.2 | 2 |
Connectors | |

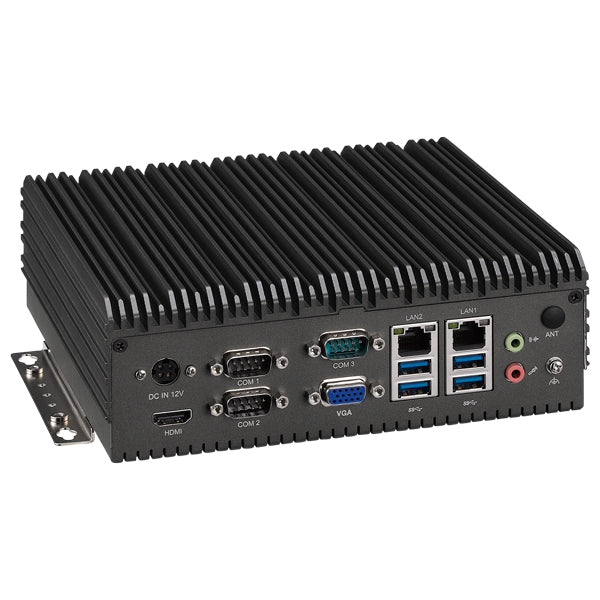

| Connectors | DB9, DB15 VGA, HDMI, 2xRJ45, 4xUSB, Audio Out, 4-pin DC input |
System Power Input | |
| Input Voltage DC | 12...12 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
| Output Power | 96 W |
Dimensions and weight | |
| Width | 200 mm |
| Height | 64.3 mm |
| Depth | 190 mm |
Operating Conditions | |
| Operating Temperature | -5...45 °C |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
