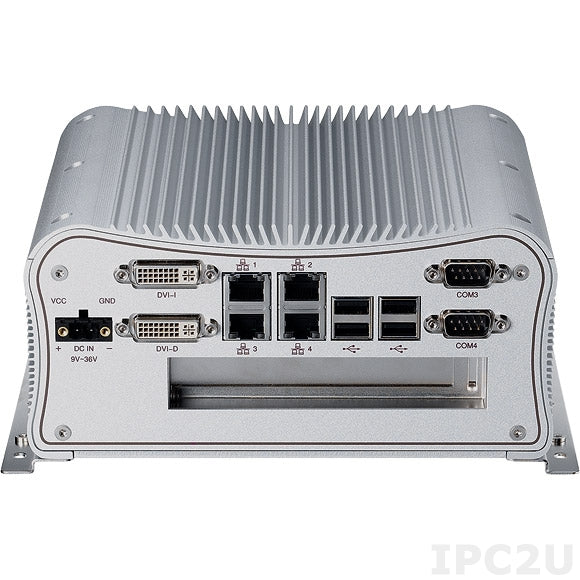

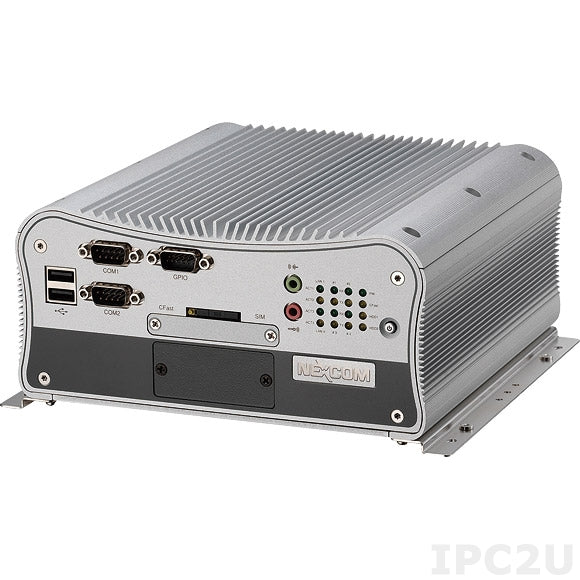

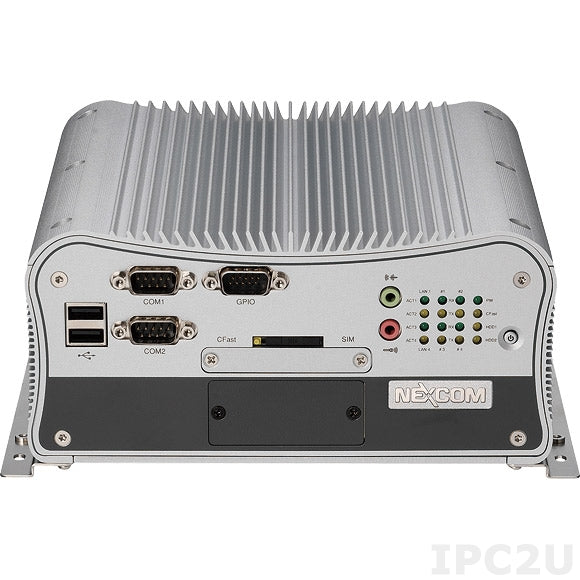

NIFE-2310

Ціна за запитом
Industrial Fieldbus Embedded Computer, Intel Atom D2550 1.86 GHz, 4GB DDR3 RAM, DVI-I, DVi-D, 4xGbE LAN, 2xRS232/422/485 w/isolation, 2xRS232/422/485, 6xUSB 2.0, 1x CFast, 1x2.5" Drive Bay, SIM, 1x PCI, 9...36V DC Input, -20...65C

Specification

Construction

Construction ChassisMetal Chassis with Aluminium Heatsink
Mounting ConfigurationBuilt-in, Wall, DIN-Rail mount

CPU

Processor InstalledIntel Atom D2550
Max CPU frequency1.86 GHz

Drive interfaces

SD Slots1
CFast Slots1

Digital Input

Total channels of digital input4

Digital Output

Total channels of digital output4

Ethernet

10/100/1000 Mbit/s2

Interfaces

COM Total2
RS-232/422/4852
USB Total2

Antenna characteristics

Cellular interfaces3G (Optional)

Supported Protocols

Industrial ProtocolsEtherCAT master, EtherNet/IP scanner, PROFINET master, Profibus master, CANopen master, DeviceNET master, Sercos III master

Connectors

Connectors4xDB9, DVI-I, DVI-D, 4xRJ45 Ethernet, 2xUSB, Audio Out, Line In, Line Out, DC Input, SIM Card Slot, DB9 GPIO

Dimensions and weight

Width195 mm
Depth200 mm
Height90 mm

System Power Input

Input Voltage DC24...24 V

Operating Conditions

Operating Temperature-20...70 °C

Standards and Certifications

CertificationsCE, FCC Class A
Vibration And ShockIEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
