Construction | |
| Construction Chassis | Metal Chassis with Aluminium Heatsink |
| Mounting Configuration | Built-in, Desktop, Wall |
| Type | Fanless |
CPU | |
| CPU Support Type | Celeron |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 1xSODIMM |
| ECC | No |
| Maximum Memory | 16 GB |
| Assembly | Removable |
Ethernet | |
| Controller Type | Intel i210 |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 4 |
| RS-232 | 2 |
| RS-232/422/485 | 2 |
| USB Total | 6 |
| USB 2.0 | 3 |
| USB v3.x | 3 |
Extension Slots | |
| M.2 | 1 |
| Mini-PCIe/Mini Card | 1 |
Connectors | |

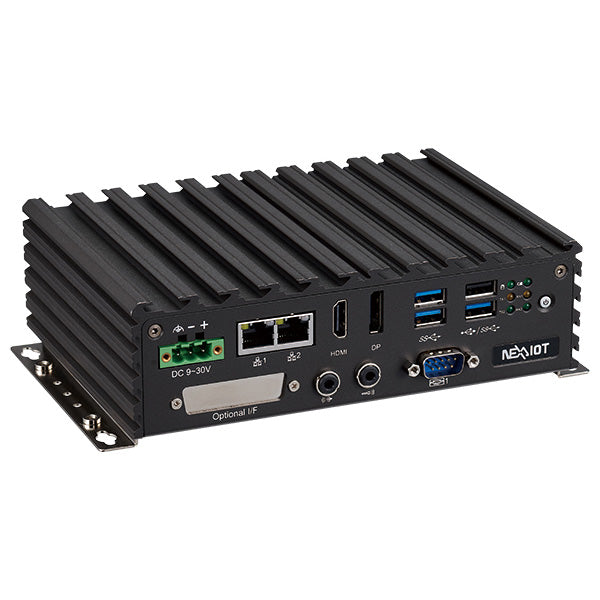

| Connectors | HDMI, 2xRJ45 Ethernet, 6xUSB, Audio, Display Port, DC input (terminal block), 2xDB9 Male |
System Power Input | |
| Input Voltage DC | 9...30 V |
Software | |
| Operating System Compatibility | Windows 10, Linux kernel 4.x |
Dimensions and weight | |
| Width | 185 mm |
| Height | 54 mm |
| Depth | 131 mm |
Operating Conditions | |
| Operating Temperature | -5...55 °C |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
