Construction | |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | Desktop, Wall |
| Type | Fanless |
CPU | |
| СPU Generation/Family | Skylake, Kaby Lake |
| CPU Support Type | Core i7, Core i5, Core i3, Pentium, Celeron |
Chipset | |
| Chipset | Intel H110 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| ECC | No |
| Maximum Memory | 32 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in Chipset |
| Interfaces | HDMI, DVI-D |
Ethernet | |
| Controller Type | Intel i210-IT |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232/422/485 | 2 |
| USB Total | 6 |
| USB 2.0 | 2 |
| USB v3.x | 4 |
Drive interfaces | |
| mSATA | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| PCI Express x4 | 1 |
| Mini-PCIe/Mini Card | 2 |
| SIM Card slots | 1 |
Connectors | |

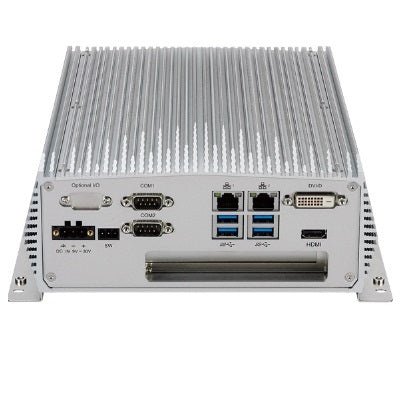

| Connectors | 2xDB9, DVI-D, HDMI, 6xUSB, Mic In, Line Out, DC Input |
System Power Input | |
| Input Voltage DC | 9...30 V |
Software | |
| Operating System Compatibility | Windows 7, Windows 8.1, Windows 10 |
Dimensions and weight | |
| Width | 215 mm |
| Height | 93 mm |
| Depth | 279 mm |
Operating Conditions | |
| Operating Temperature | -5...55 °C |
| Vibration | 0.5Grms. 5~500 Hz |
Standards and Certifications | |
| Certifications | CE, FCC Class A, EN61000-6-2, EN61000-6-4 |
