Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Built-in, Desktop, Wall |
| Type | Fanless |
CPU | |
| СPU Generation/Family | Skylake |
| Processor Installed | Intel Core i3-6102E |
| Socket | CPU onboard |
| CPU Support Type | Core i3 |
| Max CPU frequency | 1.9 GHz |
Chipset | |
| Chipset | Intel QM170 PCH |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| ECC | No |
| Maximum Memory | 32 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Intel i210-IT, Intel i219-LM |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 6 |
| RS-232 | 4 |
| RS-232/422/485 | 2 |
| USB Total | 6 |
| USB 2.0 | 2 |
| USB v3.x | 4 |
Drive interfaces | |
| mSATA | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Total | 3 |
| M.2 | 1 |
| Mini-PCIe/Mini Card | 2 |
| SIM Card slots | 1 |
Connectors | |

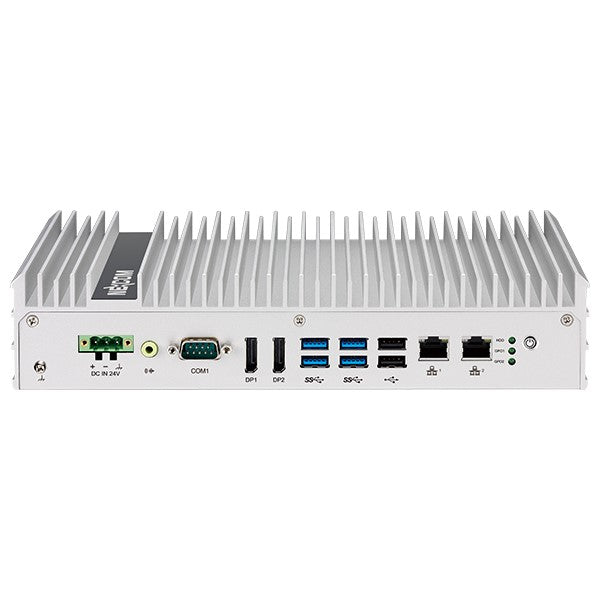

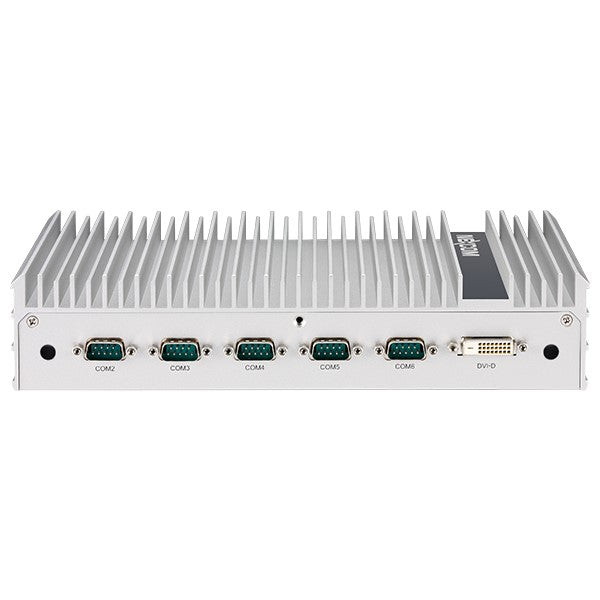

| Connectors | 6xDB9, DVI-D, 2xRJ45 Ethernet, 6xUSB, Line Out, 2xDisplayPort, DC input (terminal block) |
System Power Input | |
| Input Voltage DC | 12...24 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
| Output Power | 120 W |
Software | |
| Operating System Compatibility | Windows 7, Windows 10 |
Dimensions and weight | |
| Width | 269 mm |
| Height | 56 mm |
| Depth | 157 mm |
Operating Conditions | |
| Operating Temperature | -20...70 °C |
| Vibration | Random: 0.5Grms @ 5~500 Hz |
| Shock | HDD: 20G. half sine. 11ms |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
