Construction | |
| Construction Chassis | Metal Chassis with Aluminium Heatsink |
| Mounting Configuration | Built-in, Desktop, Wall |
| Type | Fanless |
CPU | |
| Processor Installed | Intel Celeron J1900 |
| Max CPU frequency | 2.42 GHz |
Memory | |
| Form-factor | DDR3L |
| Socket Type | 1xSODIMM |
| ECC | No |
| Default on Board Memory | 2 GB |
| Maximum Memory | 4 GB |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Intel i210-AT |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 3 |
| RS-232 | 2 |
| RS-422/485 | 1 |
| USB Total | 4 |
| USB 2.0 | 4 |
Audio | |
| Audio Controller | Intel HD Audio |
Installed drive | |
| Drive Type | SSD |
| 1st Storage Capacity | 16 GB |
Extension Slots | |
| Total | 3 |
| Mini-PCIe/Mini Card | 3 |
| SIM Card slots | 1 |
Connectors | |

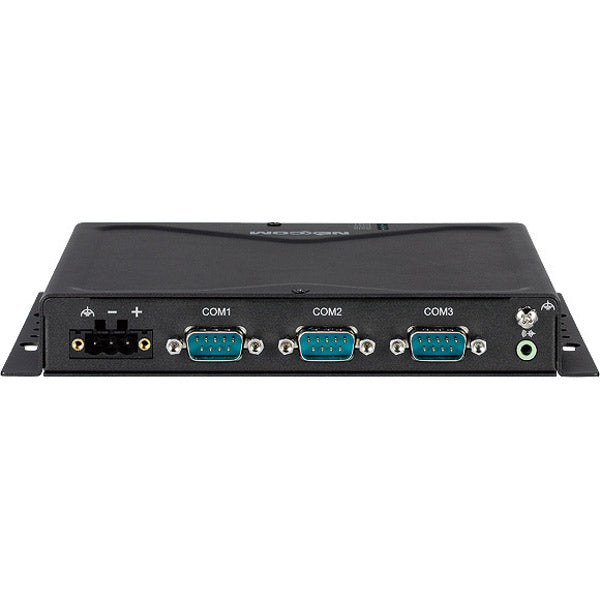

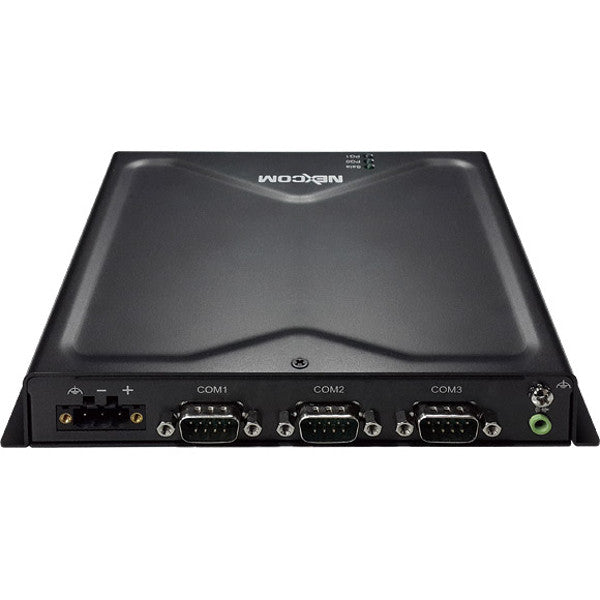

| Connectors | 3xDB9, HDMI, 2xRJ45, 4xUSB, Line Out, DC Input, SIM Card Slot |
System Power Input | |
| Input Voltage DC | 24...24 V |
Software | |
| Operating System Compatibility | Windows 7, Windows 10 |
Dimensions and weight | |
| Width | 162 mm |
| Height | 26 mm |
| Depth | 150 mm |
Operating Conditions | |
| Operating Temperature | -5...55 °C |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
| Vibration And Shock | IEC 60068-2-6, IEC 60068-2-64 |
