Construction | |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | Built-in, Desktop |
| Type | Fanless |
CPU | |
| Processor Installed | Atom x6211E |
| Socket | CPU onboard |
| Max CPU frequency | 3 GHz |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 1xSODIMM |
| ECC | No |
| Maximum Memory | 16 GB |
| Assembly | Removable |
Ethernet | |
| Controller Type | Intel i210-AT |
| Total Ethernet | 3 |
| 10/100/1000 Mbit/s | 3 |
Wi-Fi | |
| Wi-Fi Standard | Yes |
Interfaces | |
| COM Total | 2 |
| RS-232/485 | 2 |
| USB Total | 4 |
| USB 2.0 | 2 |
| USB v3.x | 2 |
Drive interfaces | |
| mSATA | 1 |
Extension Slots | |
| Total | 3 |
| M.2 | 2 |
| Mini-PCIe/Mini Card | 1 |
| SIM Card slots | Yes, 2, Nano SIM |
Antenna characteristics | |
| Cellular interfaces | 3G |
Connectors | |

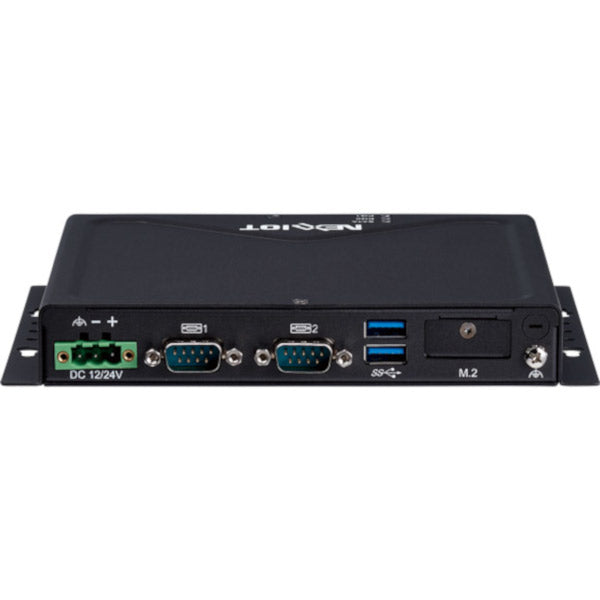

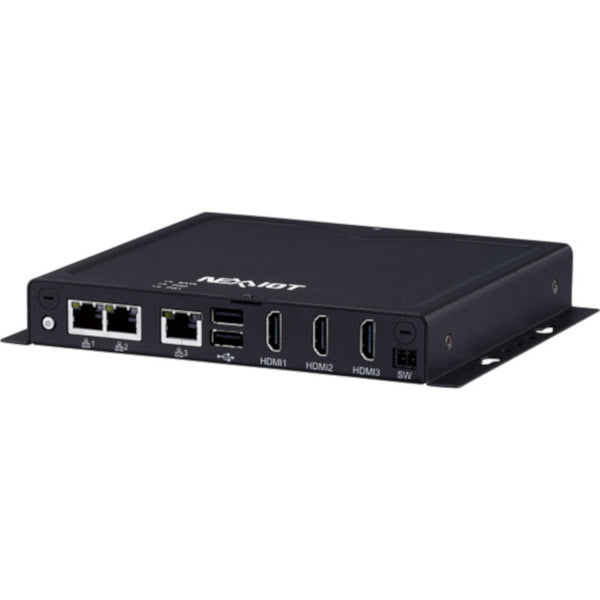

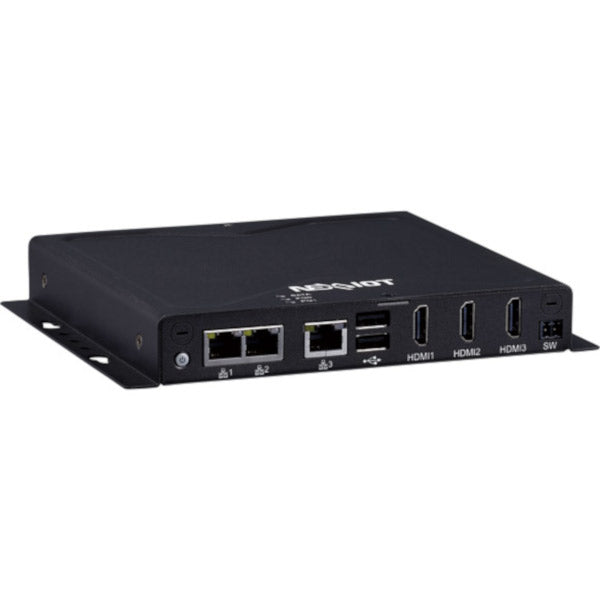

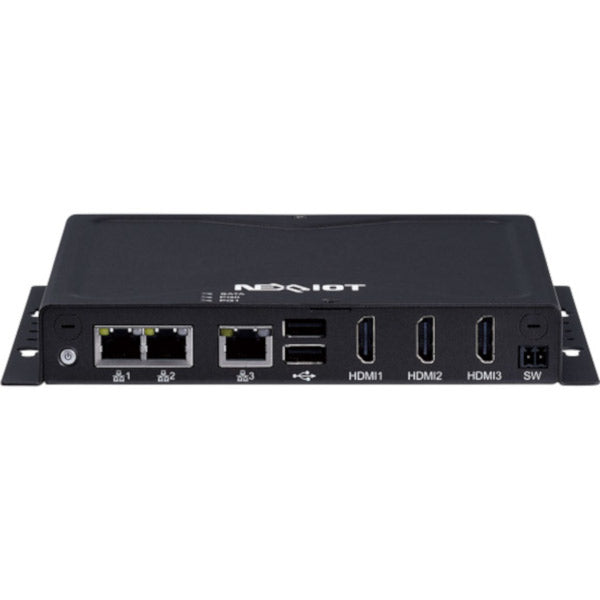

| Connectors | 3xRJ45 Ethernet, 2xUSB, DC input (terminal block), 2xUSB (4-pin), 2xDB9 Male, 3xHDMI |
System Power Input | |
| Input Voltage DC | 12...24 V |
Software | |
| Operating System Compatibility | Windows 10, Linux kernel 4.x |
Dimensions and weight | |
| Width | 162 mm |
| Height | 26 mm |
| Depth | 150 mm |
Operating Conditions | |
| Operating Temperature | -5...55 °C |
| Vibration | Random: 2Grms @ 5~500 Hz. IEC60068-2-64; Sinusoidal: 2Grms @ 5~500 Hz. IEC60068-2-6 |
| Shock | 50G. half sine. 11ms. IEC60068-2-27 |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
| Vibration And Shock | IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64 |
