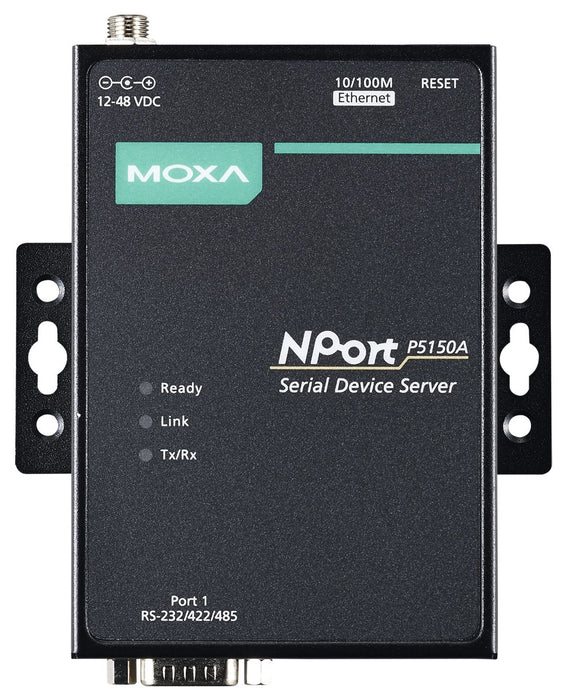

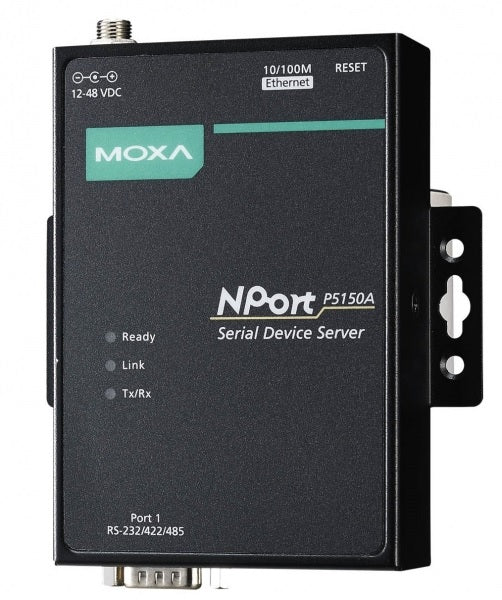

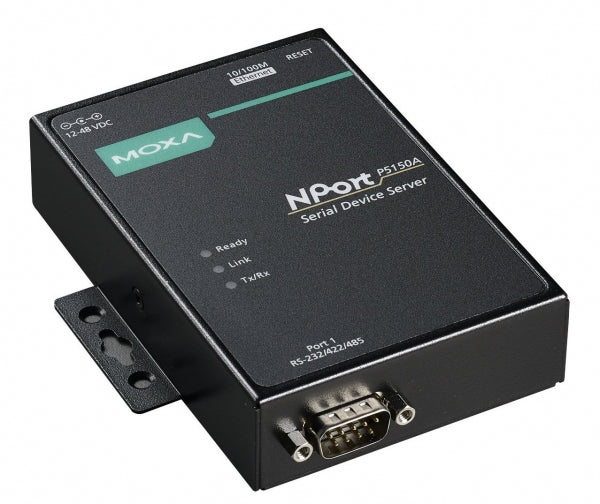

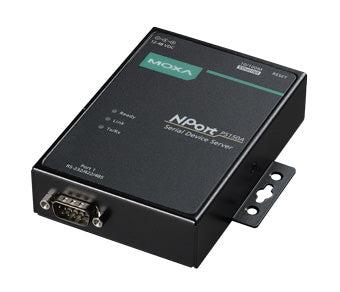

NPort P5150A-T

Ціна за запитом
1-port RS-232/422/485 PoE device server, 10/100M Ethernet, DB9 male, PoE, -40-75C, 1KV serial surge

Ethernet

Total Ethernet 1
10/100 Mbit/s 1
Type 10/100 Mbit/s 1xRJ-45

Interfaces

COM Total 1
RS-232/422/485 1

Supported Protocols

Managment Protocols IGMPv1/v2, SMTP, BootP, HTTP, Telnet, TCP, UDP, DHCP, DNS, SNMP V1
Security Protocols ICMP

LED / Controls

LED READY LED, TX LED, RX LED, LNK/ACT LED
Setup of Operation Mode Telnet, Via COM-port, Web-interface
Controls 1xReset

System Power Input

Input Voltage DC Min 12 V
Input Voltage DC Max 48 V
Power over Ethernet (PoE) PoE, IEEE 802.3af

Operating Conditions

Operating Temperature Min -40 °C
Operating Temperature Max 75 °C

Construction

Construction Chassis Metal Chassis
Mounting Configuration Wall, DIN-Rail mount

Dimensions and weight

Width 100 mm
Depth 26 mm
Height 111 mm

Standards and Certifications

Certifications CE, FCC
Safety UL 60950-1, EN 60950-1
