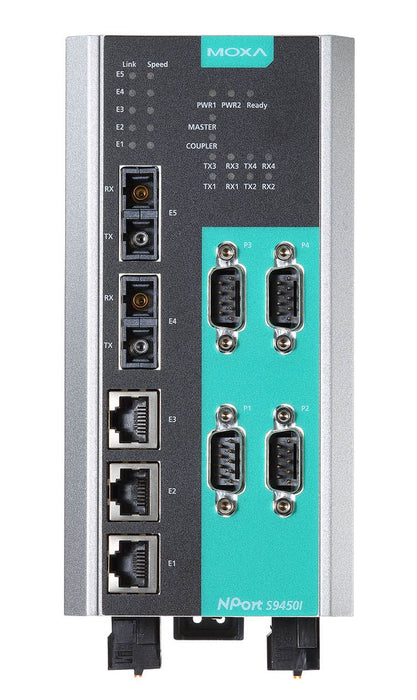

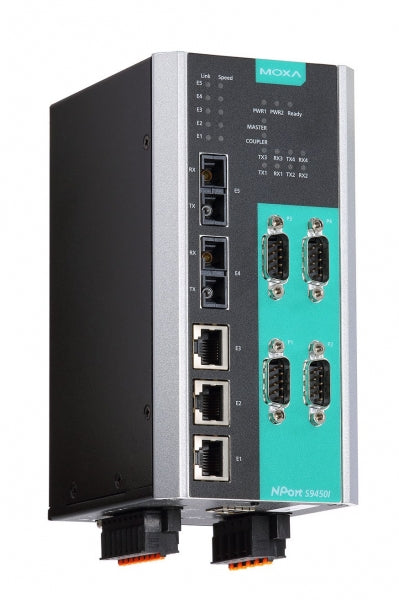

NPort S9450I-2S-SC-HV-T

Ціна за запитом
4-port Device Server, 3 Ethernet, 2 single SC FO Managed Switch, 88-300 VDC/85-264 VAC, 10/100M, -40to 85C


Total Ethernet 5
10/100 Mbit/s 3
Type 10/100 Mbit/s 2xSC, 3xRJ-45


Number of Optical Ports 2xSC
Type of Fibre Optic single-mode


COM Total 4
RS-232/422/485 4
Isolation of COM Ports 2 kV (RS-232/422/485)

Digital Input

Total channels of digital input 2

Digital Output

Total channels of digital output 2
Type Signal Relay

Supported Protocols

Managment Protocols IGMPv1/v2, DHCP Server/Client, DHCP Option 66/67/82, SNTP, SMTP, SNMPv1/v2c/v3, BootP, GMRP, GVRP, HTTP, RARP, RMON, Telnet, TFTP, TCP, UDP, DNS, IGMP, ARP, LACP
Security Protocols RADIUS, ICMP

LED / Controls

LED 10/100M LED, READY LED, Master LED, Coupler LED, PWR1, PWR2, COM-ports LED
Setup of Operation Mode Telnet, Console Port, By Switches, Web-interface
Controls 1xReset


Connectors Console Port RS-232 (RJ-45)

System Power Input

Input Voltage DC Min 88 V
Input Voltage DC Max 300 V
Input Voltage AC Min 85 V
Input Voltage AC Max 264 V

Operating Conditions

Operating Temperature Min -40 °C
Operating Temperature Max 85 °C


Construction Chassis Metal Chassis
Mounting Configuration Wall, DIN-Rail mount

Dimensions and weight

Width 80 mm
Depth 109 mm
Height 160 mm

Standards and Certifications

Certifications CE, FCC Class A, FCC
Oil And Gas UL/cUL Class I Division 2 Groups A/B/C/D
Power Automation IEC 61850-3, IEEE 1613
Safety UL 508, UL 61010-2-201
