Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Built-in, Desktop, Wall |
| Type | Fanless |
CPU | |
| Socket | LGA1151 |
| CPU Support Type | Core i7, Core i5, Core i3, Celeron, Xeon |
Chipset | |
| Chipset | Intel C246 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| Maximum Memory | 64 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 10 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 3 |
| RS-232 | 2 |
| RS-232/422/485 | 1 |
| USB Total | 6 |
| USB 2.0 | 2 |
| USB v3.x | 4 |
Digital Input-Output | |
| Channels of DIO | 8 |
Industrial Interfaces | |
| CAN Port | 1 |
Audio | |
| Audio Controller | Intel HD Audio |
Drive interfaces | |
| RAID Levels | 1, 5, 10 |
| mSATA | 1 |
Storage Cage | |
| Number Of Cage External | 4 |
| 2.5" Cage External | 4 |
Extension Slots | |
| Total | 5 |
| M.2 | 2 |
| Mini-PCIe/Mini Card | 3 |
| SIM Card slots | Full size Sim-card, 6 |
Antenna characteristics | |
| Cellular interfaces | 3G |
Additional Functions | |
| GPS | GPS |
Connectors | |

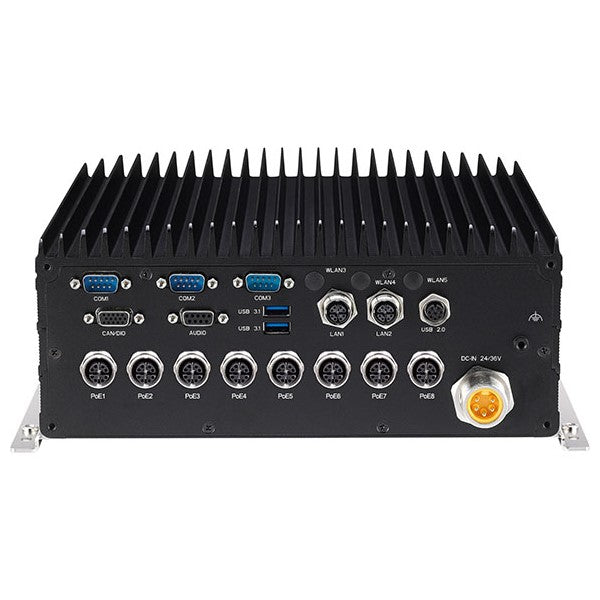

| Connectors | 3xDB9, DB15 VGA, 2xHDMI, 4xUSB, 1xDB15 DIO, DB15 CAN Bus, 1xSMA (GPS antenna connector), DB9 Female, 8-pin M12 A-code Male, 2x8-pin M12 X-code Male, M21 DC-in |
System Power Input | |
| Input Voltage DC | 24...36 V |
Software | |
| Operating System Compatibility | Linux OS, Windows 10 |
Dimensions and weight | |
| Width | 260 mm |
| Height | 110 mm |
| Depth | 266 mm |
Operating Conditions | |
| Operating Temperature | -40...70 °C |
| Vibration | 2g @5~500 Hz |
| Shock | 20g |
Standards and Certifications | |
| Certifications | CE, FCC Class B |
| MIL-STD-810 | MIL-STD-810F Test Method 516.5 Crash Hazard, MIL-STD-810F Test Method 514.5 Highway Truck |
| Rolling Stock | EN 50155, EN 45545 |
| Automotive | e13 Mark |
