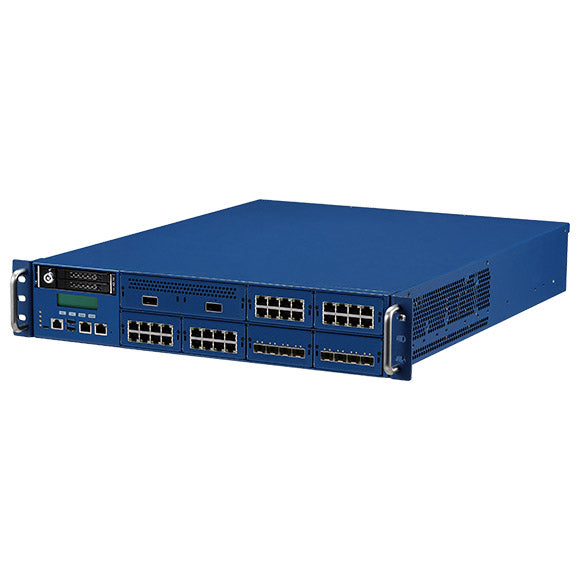

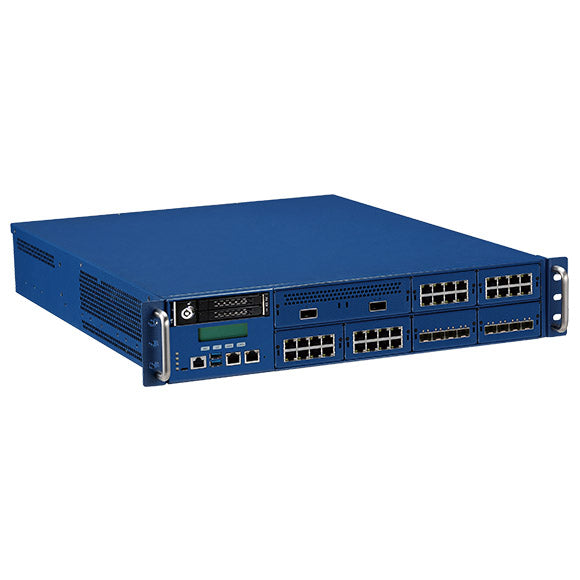

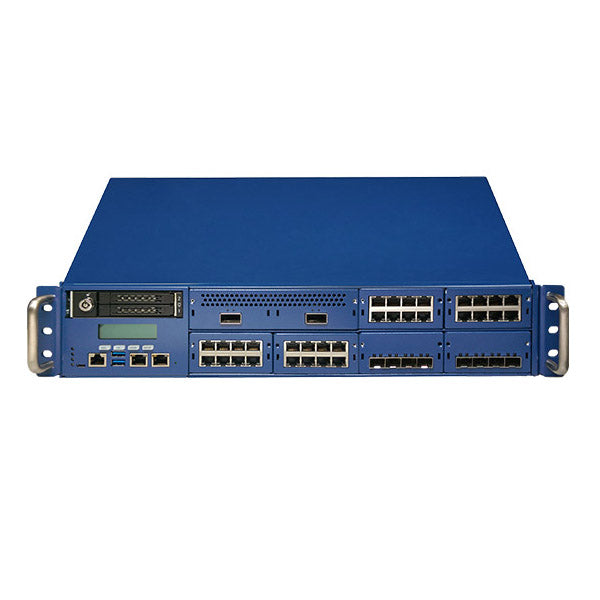

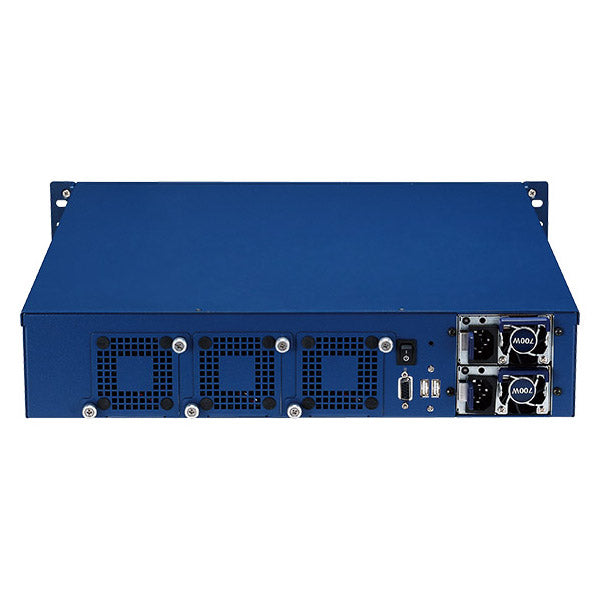

NSA-7145

Name: NSA-7145
Brand: NEXCOM
SKU: 56437000
Availability: InStock

NEXCOM

Ціна за запитом

2U Dual Intel Xeon processor scalable family with up to 512GB DDR4 2133/2400/2666, Up to 8 slots for PCIe LAN Modules, Swappable 2x25" SATA/SAS HDD, CFast, 4xUSB, VGA, CRPS Redundant Power Supply, Support BMC with IPMI 2.0

Специфікація

Specification

Construction
Construction Chassis	Metal Chassis
Mounting Configuration	Desktop, 19" Rackmount
Height	2 U
Type	Fans
Memory
Form-factor	DDR4
Socket Type	16xDIMM
ECC	Yes
Maximum Memory	512 GB
Ethernet
Controller Type	Intel i350
Interfaces
USB Total	4
USB 2.0	2
USB v3.x	2
Drive interfaces
CFast Slots	1
Storage Cage
3.5" Cage External	2
Extension Slots
PCI Express x8	1
Connectors
Connectors	DB15 VGA, 4xUSB
Power Supply
Output Power	700 W
Dimensions and weight
Width	438 mm
Height	570 mm
Depth	88 mm
Operating Conditions
Operating Temperature	0...40 °C
Standards and Certifications
Certifications	CE, FCC Class A
