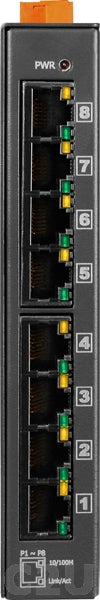

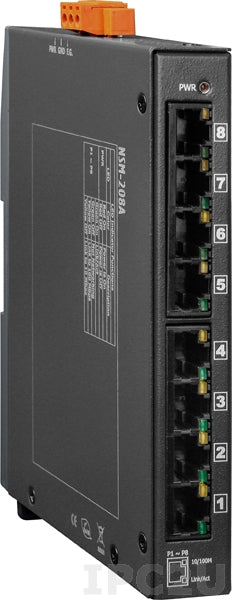

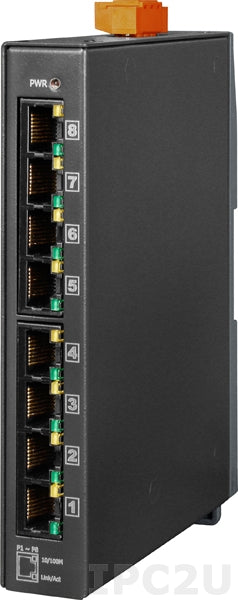

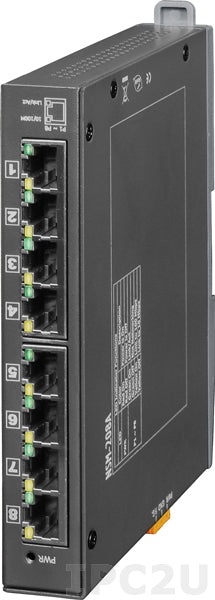

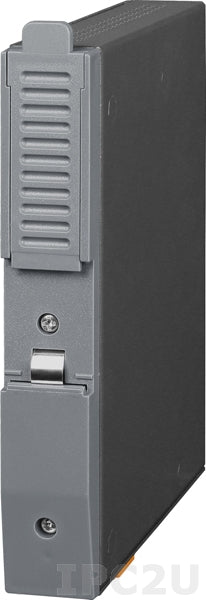

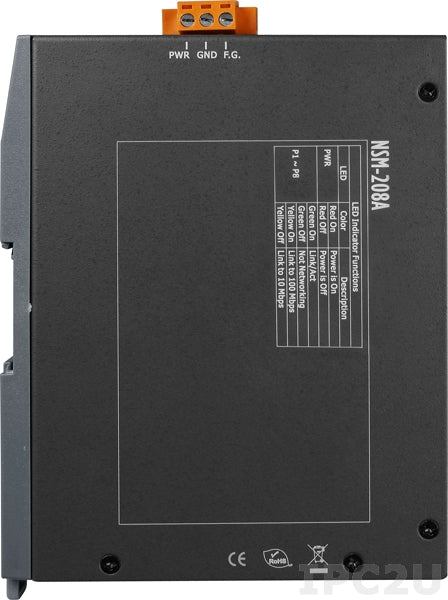

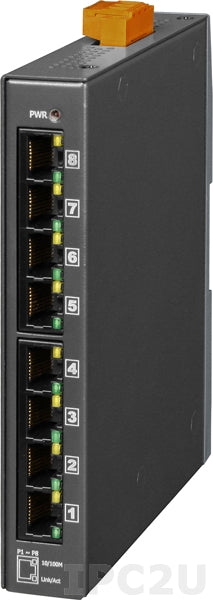

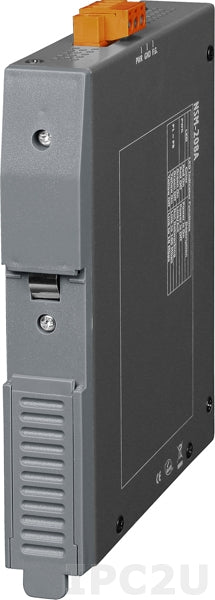

NSM-208A

Name: NSM-208A
Brand: ICP DAS
SKU: 66186700
Availability: InStock

ICP DAS

Ціна за запитом

Unmanaged 8-port Industrial 10/100 Mbps Ethernet Switch with Metal Casing (RoHS)

Специфікація

Specification

Ethernet
Total Ethernet	8
10/100 Mbit/s	8
Type 10/100 Mbit/s	8xRJ-45
Switch Properties
Managed	No
Switch Level	Layer 2
Supported Protocols
IEEE Standard	IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC	12...48 V
Construction
Construction Chassis	Metal Chassis
Mounting Configuration	DIN-Rail mount
Protection Level of Chassis	IP30
Dimensions and weight
Width	25 mm
Depth	119 mm
Height	168 mm
Operating Conditions
Operating Temperature	-40...75 °C
Standards and Certifications
Certifications	CE, WEEE, FCC

Документація
