Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | 19" Rackmount, Wall, Wall VESA 100 |
| Protection Level of Front Side (Panel) | IP65 |
Display | |
| Display Type | LCD TFT |
| Diagonal | 15 " |
| Maximum resolution | 1024x768 Dots |
| Brightness | 250 Cd/m2 |
Touch Screen | |
| Touch Screen Type | Resistive |
CPU | |
| СPU Generation/Family | Skylake, Kaby Lake |
| Socket | LGA1151 |
| CPU Support Type | Core i3, Core i5, Core i7 |
Chipset | |
| Chipset | Intel H110 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xDIMM |
| Maximum Memory | 32 GB |
Ethernet | |
| Controller Type | Intel i211-AT 10/100/1000 Mbps, Intel i219-LM |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 4 |
| RS-232 | 3 |
| RS-232/422/485 | 1 |
| USB Total | 6 |
| USB 2.0 | 2 |
| USB v3.x | 4 |
Extension Slots | |
| PCI | 1 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

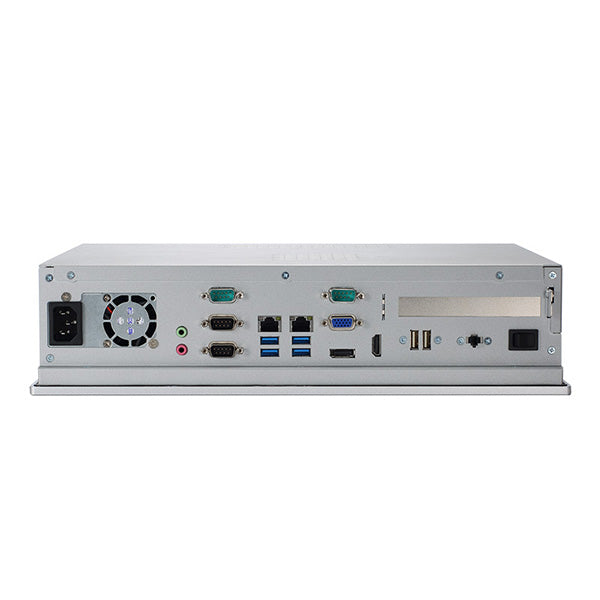

| Connectors | DB15 VGA, HDMI, 2xRJ45 Ethernet, 6xUSB, Display Port |
System Power Input | |
| Input Voltage AC | 100...240 V |
| Power Consumption | 200 W |
Software | |
| Operating System Compatibility | Windows 7, Windows 8, Windows 10 |
Dimensions and weight | |
| Width | 378.3 mm |
| Height | 90 mm |
| Depth | 310.3 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
Standards and Certifications | |
| Certifications | CE |
