Construction | |
| Construction Chassis | Aluminium Chassis |
| Protection Level of Front Side (Panel) | IP65, NEMA4 |
| Type | Fan |
Display | |
| Display Type | LCD TFT |
| Diagonal | 17 " |
| Maximum resolution | 1280x1024 Dots |
| Aspect Ratio | 4:3 |
| Brightness | 250 Cd/m2 |
Touch Screen | |
| Touch Screen Type | Resistive |
CPU | |
| СPU Generation/Family | Skylake |
| Socket | LGA1151 |
| CPU Support Type | Celeron, Core i3, Core i5, Core i7, Pentium |
Chipset | |
| Chipset | Intel H110 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xDIMM |
| ECC | No |
| Maximum Memory | 32 GB |
Graphic | |
| Graphic Controller | Integrated in Chipset |
Ethernet | |
| Controller Type | Intel i211-AT 10/100/1000 Mbps, Intel i219-LM |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 4 |
| RS-232 | 3 |
| RS-232/422/485 | 1 |
| USB Total | 6 |
| USB 2.0 | 2 |
| USB v3.x | 4 |
Extension Slots | |
| Total | 1 |
| PCI | 1 |
LED / Controls | |
| LED | LED Bar |
| Controls | On/Off, KeyPad |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

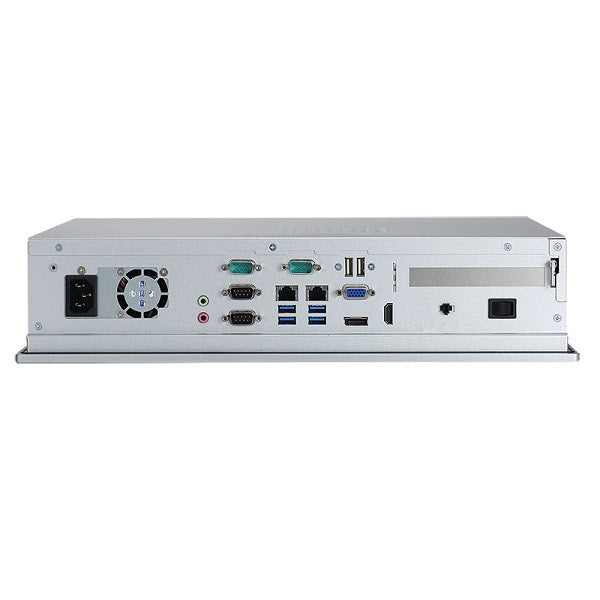

| Connectors | DB9, DB25 Female, DB15 VGA, HDMI, 2xRJ45 Ethernet, Mic In, Line Out, AC Input, Console Port RS-232 (DB9M) |
System Power Input | |
| Input Voltage AC | 100...240 V |
| Power Consumption | 143 W |
Power Supply | |
| Type of Power Supply | AC-AC |
| Output Power | 200 W |
Software | |
| Operating System Compatibility | Windows 7, Windows 8.1, Windows 10 |
Dimensions and weight | |
| Width | 411.82 mm |
| Height | 353.24 mm |
| Depth | 90 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
| Vibration | 1.0G. 5 ~ 500 Hz |
Standards and Certifications | |
| Certifications | CE |
