Construction | |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | Panel, Wall, Wall VESA 100 |
| Protection Level of Front Side (Panel) | IP65, NEMA 4, NEMA 12 |
| Material Front Side (Panel) | Heavy-Duty Steel |
Display | |
| Display Type | LCD TFT |
| Diagonal | 12.1 " |
| Maximum resolution | 1024x768 Dots |
| Aspect Ratio | 4:3 |
| Brightness | 500 Cd/m2 |
| Contrast Ratio | 1000~1 |
| Input Interface | HDMI, VGA, DisplayPort |
Touch Screen | |
| Touch Screen Type | Resistive |
| Interface | USB |
LED / Controls | |
| LED | 1xOn/Off LED |
| Controls | Control Buttons |
Connectors | |

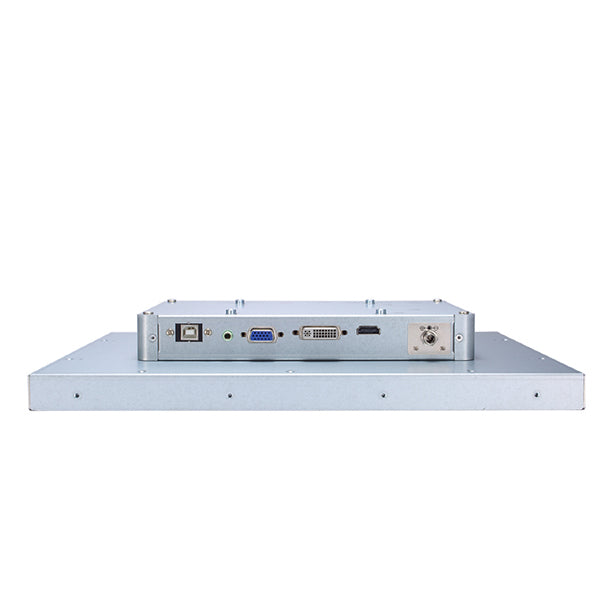

| Connectors | DB15 VGA, HDMI, DC Input, Display Port |
System Power Input | |
| Input Voltage DC | 24...24 V |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Operating Conditions | |
| Operating Temperature | -20...50 °C |
Dimensions and weight | |
| Width | 311.81 mm |
| Height | 54.95 mm |
| Depth | 250.31 mm |
Standards and Certifications | |
| Certifications | CE |
