Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Desktop, Panel, Wall, Wall VESA 100, Arm |
| Protection Level of Front Side (Panel) | IP65 |
| Material Front Side (Panel) | Aluminum |
Display | |
| Display Type | LCD TFT |
| Diagonal | 17 " |
| Maximum resolution | 1280x1024 Dots |
| Brightness | 250 Cd/m2 |
| Contrast Ratio | 1000~1 |
| Input Interface | DisplayPort, HDMI, VGA |
Touch Screen | |
| Touch Screen Type | Resistive |
| Interface | USB |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off, Control Buttons |

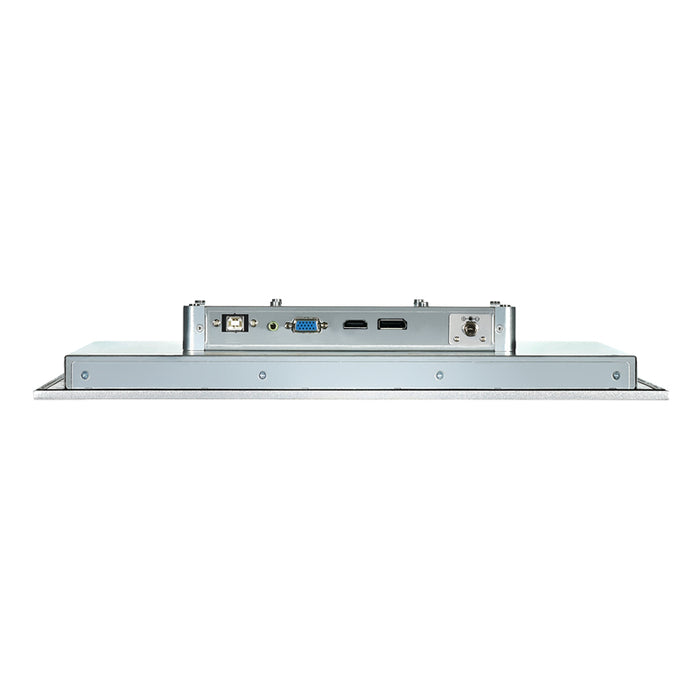

Connectors | |
| Connectors | DB15 VGA, HDMI, DC Input, Display Port |
System Power Input | |
| Input Voltage DC | 24...24 V |
Power Supply | |
| Type of Power Supply | Industrial, External power adapter AC/DC |
| Output Power | 36 W |
| Input Voltage AC | 100...240 V |
Operating Conditions | |
| Operating Temperature | 0...45 °C |
Dimensions and weight | |
| Width | 410 mm |
| Height | 338.3 mm |
| Depth | 58 mm |
Standards and Certifications | |
| Certifications | CE |
