Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Built-in, Wall VESA 100 |
| Protection Level of Front Side (Panel) | IP65 |
| Protection Level of Chassis | IP40 |
| Material Front Side (Panel) | Aluminum |
Display | |
| Display Type | LCD TFT |
| Diagonal | 12.1 " |
| Maximum resolution | 1024x768 Dots |
| Brightness | 600 Cd/m2 |
| Contrast Ratio | 1000~1 |
Touch Screen | |
| Touch Screen Type | Resistive |
| Interface | RS-232 |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off, Control Buttons |
Connectors | |

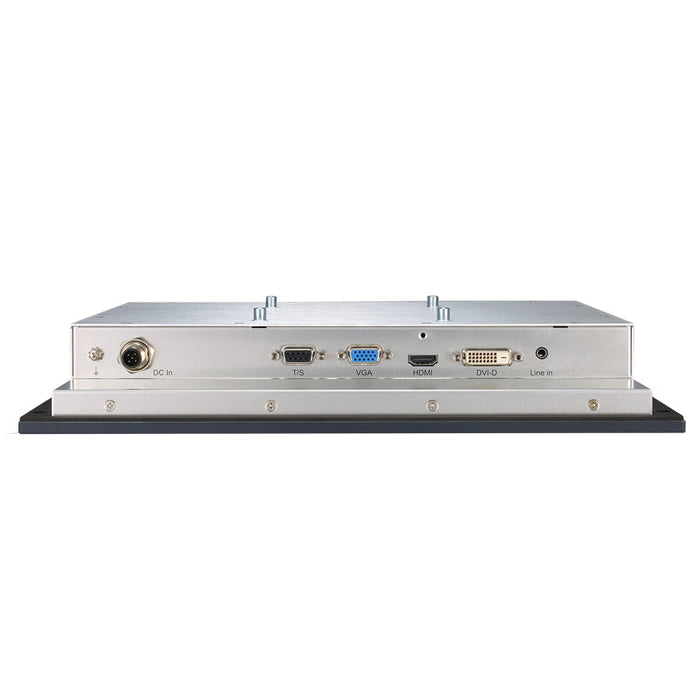

| Connectors | DB9, DVI-D, DB15 VGA, HDMI, Line In, DC Input |
System Power Input | |
| Input Voltage DC | 24...110 V |
Operating Conditions | |
| Operating Temperature | -25...55 °C |
Dimensions and weight | |
| Width | 330 mm |
| Height | 245 mm |
| Depth | 50.2 mm |
Standards and Certifications | |
| Certifications | CE, FCC |
| Rolling Stock | EN 50155, IEC 61373, EN 50121-3-2 |
