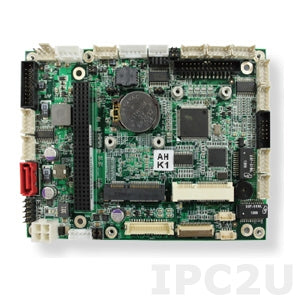

PBC-900J

PBC-900J

Arbor
Ціна за запитом
Base Board for COM Express Type 6 Module, Fintek F81866 IO Chipset, VGA/LVDS, 2xGbE LAN, 4xCOM, 2xUSB 2.0, 2xUSB 3.0, 1xKB/MS, Mini-Card slot, PCI/104 slot, 1xmSATA, 1xSATA, 16-bit DIO, Audio, LPT, 12VDC-in, -40..85C

Specification

System Architecture

Form FactorCOM Express Basic

Construction

TypeFanless

Chipset

ChipsetFintek F81866

Graphic

Graphic ControllerIntegrated in CPU
InterfacesLVDS, VGA

Ethernet

Controller TypeIntel i210AT 10/100/1000 Mbps
Total Ethernet2
10/100/1000 Mbit/s2

Interfaces

COM Total4
RS-2323
RS-232/422/4851
USB Total4
USB 2.02
USB v3.x2
LPTLPT

Digital Input-Output

Channels of DIO16

Audio

Audio ControllerRealtek ALC662

Drive interfaces

SATA 21
mSATA1

Extension Slots

Mini-PCIe/Mini Card1
PCI-1041

Dimensions and weight

Width125 mm
Length95 mm

Operating Conditions

Operating Temperature-40...85 °C
Humidity10-95%

Files

Documentation

📄 PBC-900J Datasheet

📄 PBC-900J User Manual
