PBE-1700-W

Name: PBE-1700-W
Brand: Arbor
SKU: 57982600
Availability: InStock

Arbor

Ціна за запитом

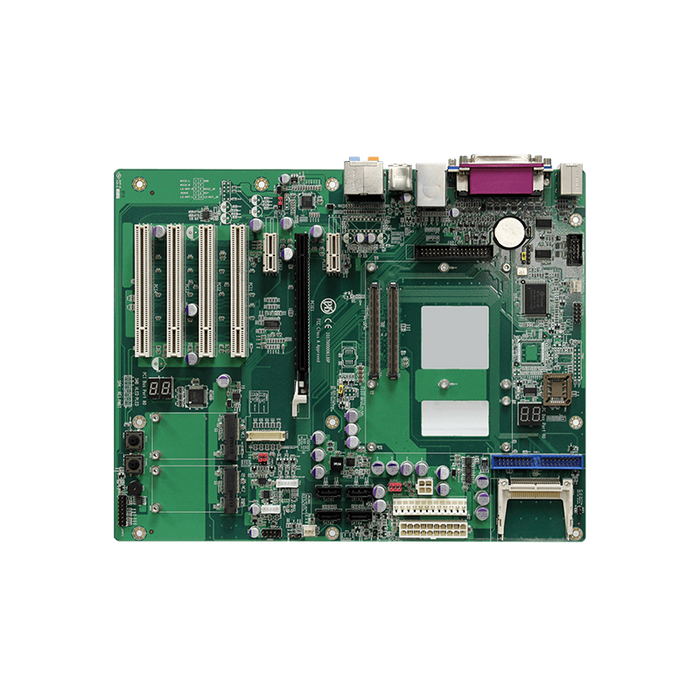

Base Board for COM Express Type 2 Module, Winbond W83627HG Super IO, LVDS/VGA, 2xCOM, 6xUSB 2.0, 2xPS/2 for KB/MS, 1xRJ45, 8-bit DIO, Audio, 4xSATA, 1xUltra-ATA, 1xFDD, 1xCF, 1xExpressCard, 12VDC-in, -40..85C

Специфікація

Specification

System Architecture
Form Factor	COM Express Extended
Construction
Type	Fanless
Graphic
Graphic Controller	Integrated in CPU
Interfaces	LVDS, VGA
Ethernet
Total Ethernet	1
10/100/1000 Mbit/s	1
Interfaces
COM Total	2
RS-232	2
USB Total	6
USB 2.0	6
Digital Input-Output
Channels of DIO	8
Audio
Audio Controller	Realtek ALC888
Drive interfaces
SATA 3	4
CompactFlash Slots	1
Extension Slots
PCI Express x1	2
Connectors
Connectors	20-pin ATX, 2xDB9, RJ45 Ethernet, 4xUSB, Audio (in/out/Mic), 2xPS/2 Keyboard/Mouse
Dimensions and weight
Width	244 mm
Length	305 mm
Operating Conditions
Operating Temperature	-40...85 °C
Humidity	10-95%

Документація

Files

Documentation

📄 PBE-1700-Series-Datasheet.pdf
