Construction | |
| Construction Chassis | Metal Chassis with Aluminium Heatsink |
| Protection Level of Front Side (Panel) | IP65 |

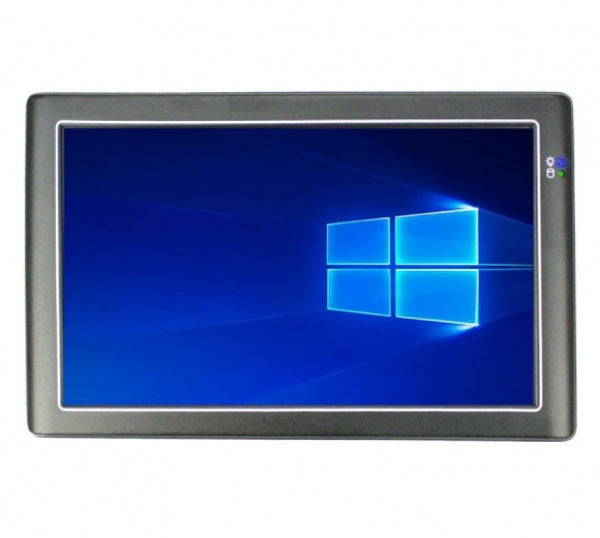

Display | |
| Display Type | LCD TFT |
| Diagonal | 9 " |
| Maximum resolution | 1024x600 Dots |
| Brightness | 300 Cd/m2 |
Touch Screen | |
| Touch Screen Type | Resistive |
CPU | |
| СPU Generation/Family | Braswell |
| Processor Installed | Intel Atom x5-E8000 |
| Socket | CPU onboard |
| Max CPU frequency | 2 GHz |
Chipset | |
| Chipset | Intel Braswell SoC |
Memory | |
| Form-factor | DDR3L |
| Socket Type | Soldered |
| Default on Board Memory | 4 GB |
| Assembly | Fixed on Board |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 1 |
| 10/100/1000 Mbit/s | 1 |
Interfaces | |
| COM Total | 1 |
| RS-232 | 1 |
| USB Total | 2 |
| USB v3.x | 2 |
Audio | |
| Audio Controller | Realtek ALC262 |
Drive interfaces | |
| M.2 | 1 |
Extension Slots | |
| Total | 1 |
| Mini-PCIe/Mini Card | 1 |
| SIM Card slots | 1 |
LED / Controls | |
| LED | 1xHDD LED, Power LED |
| Controls | On/Off |
Connectors | |

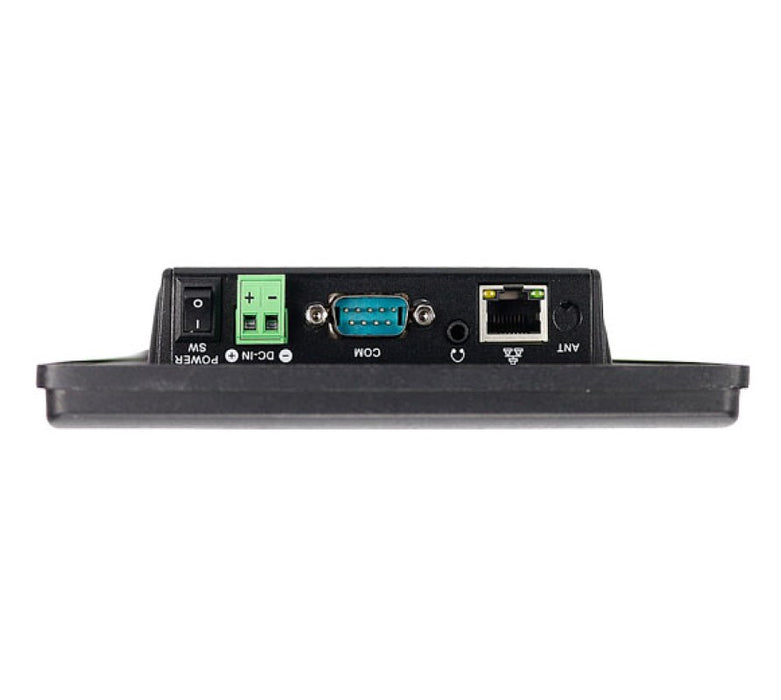

| Connectors | DB9, RJ45 Ethernet, 2xUSB, DC input (terminal block) |
System Power Input | |
| Input Voltage DC | 12...36 V |
Software | |
| Operating System Compatibility | Windows 7, Linux OS, Windows 10 |
Standards and Certifications | |
| Certifications | CE, FCC, VCCI |
