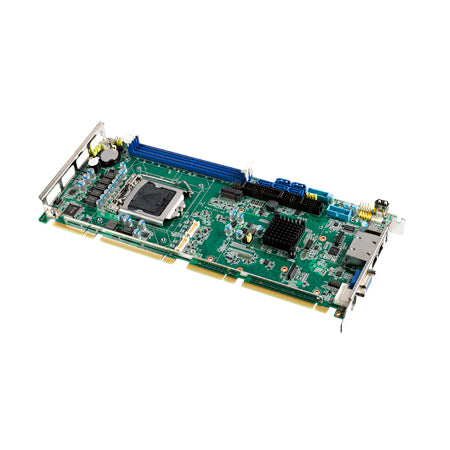

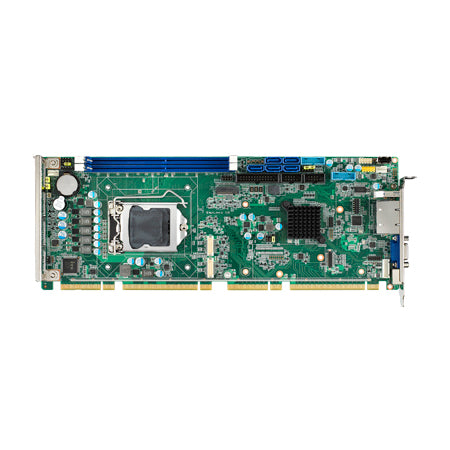

System Architecture | |
| Form Factor | Full Size PICMG 1.3 |
CPU | |
| CPU Support Type | Core i7, Core i5, Core i3, Xeon, Pentium, Celeron |
| Socket | LGA1151 |
| Number of CPU | 1 |
Chipset | |
| Chipset | Intel Q170 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xDIMM |
| ECC | No |
| Maximum Memory | 32 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
| Interfaces | DisplayPort, DVI-D, VGA |
Ethernet | |
| Controller Type | Intel i211, Intel i219-LM |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232 | 2 |
| USB Total | 12 |
| USB 2.0 | 7 |
| USB v3.x | 5 |
| LPT | EPP, SPP |
Digital Input-Output | |
| Channels of DIO | 8 |
Drive interfaces | |
| RAID Levels | 1, 5, 10 |
Extension Slots | |
| Total | 1 |
| M.2 | 1 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |
| Connectors | DB15 VGA, PS/2 Keyboard/Mouse, 2xRJ45 Ethernet, 1xUSB |
Dimensions and weight | |
| Width | 338 mm |
| Length | 122 mm |
Operating Conditions | |
| Operating Temperature | 0...60 °C |
