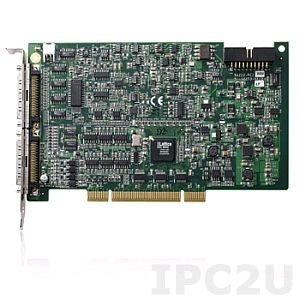

System Architecture |
| System Bus | Universal PCI |
Analog Input |
| Total channels of analog input | 16 |
| Single-Ended channels | 16 |
| Differential channels | 8 |
| Number of Bits | 16 Bit |
| Sampling rate | 250 Hz |
| Voltage range | +/-500 mV, +/-1 V, +/-1.25 V, +/-2.5 V, +/-5 V, +/-10 V, +/-2 V |
Analog Output |
| Channels of analog input | 2 |
| Voltage range | +/-10 V |
Digital Input |
| Total channels of digital input | 16 |
| Type | Wet contact |
| Sink/Source | Sink |
| Level of Logic "0" | 0~0 V |
| Level of Logic "1" | 5~5 V |
| Number of channels | 4 |
| Counter capacity | 32 Bit |
| Max frequency | 80 kHz |
| Signal Type | A/B, CW/CCW, Frequency |
Digital Output |
| Total channels of digital output | 16 |
| Type | Open collector |
| Sink/Source | Sink |
| Output voltage | 3.3~3.3 V |
| Channels | 4 |
| Output frequency range | 0~5 MHz |
Connectors |
| Connectors | 2x68-pin SCSI VHDCI |
Software |
| Operating System Compatibility | Windows XP, Windows 7, Linux OS |
| Development Software | Visual Studio .NET, MATLAB, LabVIEW, AD-Logger, DAQBench |
Operating Conditions |
| Operating Temperature | 0...55 °C |
