PCI-P16C16U

Name: PCI-P16C16U
Brand: ICP DAS
SKU: 06978700
Availability: InStock

ICP DAS

Ціна за запитом

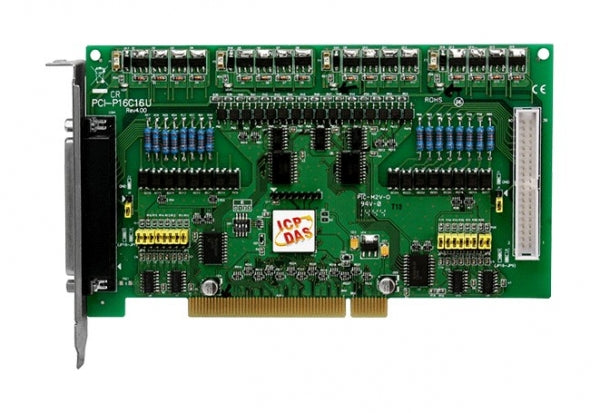

Universal PCI Isolated 16DI, 16DO Board, Adapter CA-4037x1, Cable Socket CA-4002x2

Специфікація

Specification

System Architecture
System Bus	Universal PCI
Digital Input
Total channels of digital input	16
Isolation of Digital Input	5000 V
Level of Logic "0"	0~1 V
Level of Logic "1"	5~24 V
Digital Output
Total channels of digital output	16
Type	Open collector
Sink/Source	Sink
Output voltage	0~30 V
Max. load current	600 mA
Connectors
Internal Ports	40-pin box header
Connectors	DB37 Female
Cables
Included Cables	CA-4037W
Software
Operating System Compatibility	Linux kernel 2.6, Windows XP, Windows 7, Windows 8, Windows Vista
Development Software	VC, VB, Delphi, BCB, Visual Studio .NET, LabVIEW
Operating Conditions
Operating Temperature	0...60 °C
