PCI-P16POR16U

Name: PCI-P16POR16U
Brand: ICP DAS
SKU: 07003600
Availability: InStock

ICP DAS

Ціна за запитом

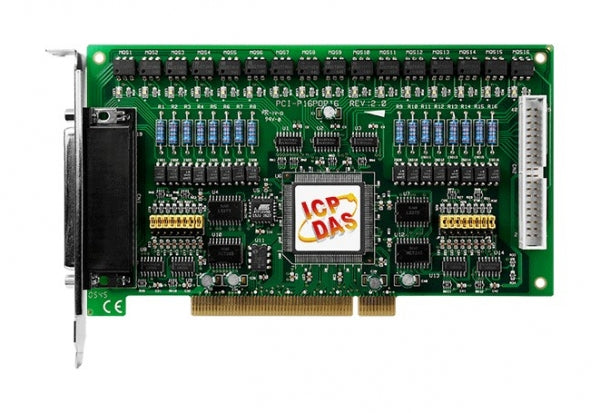

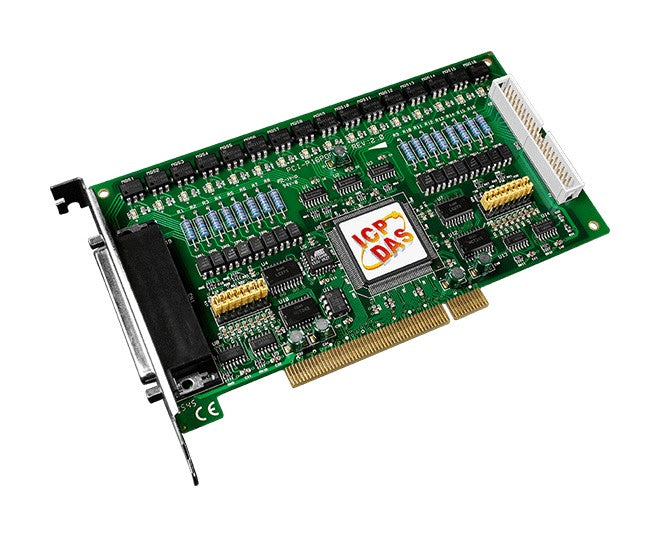

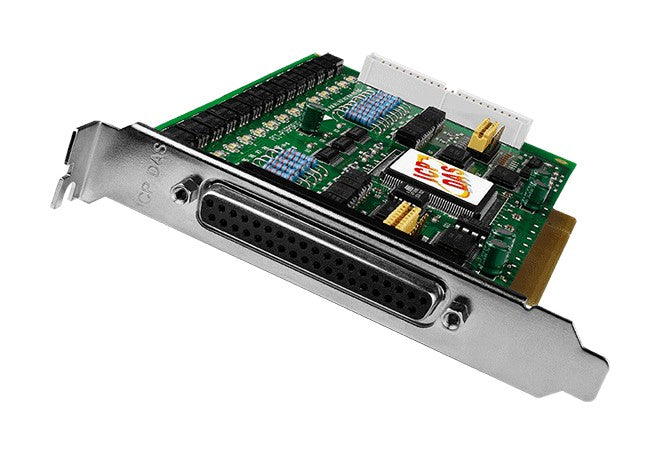

Universal PCI Isolated 16DI, 16DO Board, Adapter CA-4037x1, Cable Socket CA-4002x2

Специфікація

Specification

System Architecture
System Bus	Universal PCI
Digital Input
Total channels of digital input	16
Isolation of Digital Input	5000 V
Level of Logic "0"	0~1 V
Level of Logic "1"	5~24 V
Digital Output
Total channels of digital output	16
Type	PhotoMos relay
Relay (Form A)	16
Contact rating of relay (Form A)	0.13A@350V AC, 0.13A@350V DC
Connectors
Internal Ports	40-pin box header
Connectors	DB37 Female
Cables
Included Cables	CA-4037W
Software
Operating System Compatibility	Linux kernel 2.6, Windows XP, Windows 7, Windows 8, Windows Vista
Development Software	VC, VB, Delphi, BCB, LabVIEW
Operating Conditions
Operating Temperature	0...60 °C

Документація
