System Architecture | |
| Form Factor | Full Size PICMG 1.3 |
CPU | |
| СPU Generation/Family | Comet Lake, Rocket Lake-S |
| CPU Support Type | Celeron, Core i3, Core i5, Core i7, Pentium |
| Socket | LGA1200 |
Chipset | |
| Chipset | Intel Q470E |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 4xDIMM |
| Maximum Memory | 128 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
| Interfaces | HDMI |
Ethernet | |
| Controller Type | Intel i225V |
| Total Ethernet | 2 |
| 2,5 Gbit/s | 2 |
Interfaces | |
| COM Total | 4 |
| RS-232 | 2 |
| RS-422/485 | 2 |
| USB Total | 12 |
| USB 2.0 | 6 |
| USB v3.x | 6 |
Drive interfaces | |
| RAID Levels | 1, 5, 10 |
| M.2 | 1 |
Extension Slots | |
| SIM Card slots | 1 |
| M.2 | 3 |
Connectors | |
| Internal Ports | 4xCOM, 4xSATA 3, 6x4-pin USB 2.0, USB 3.0 |

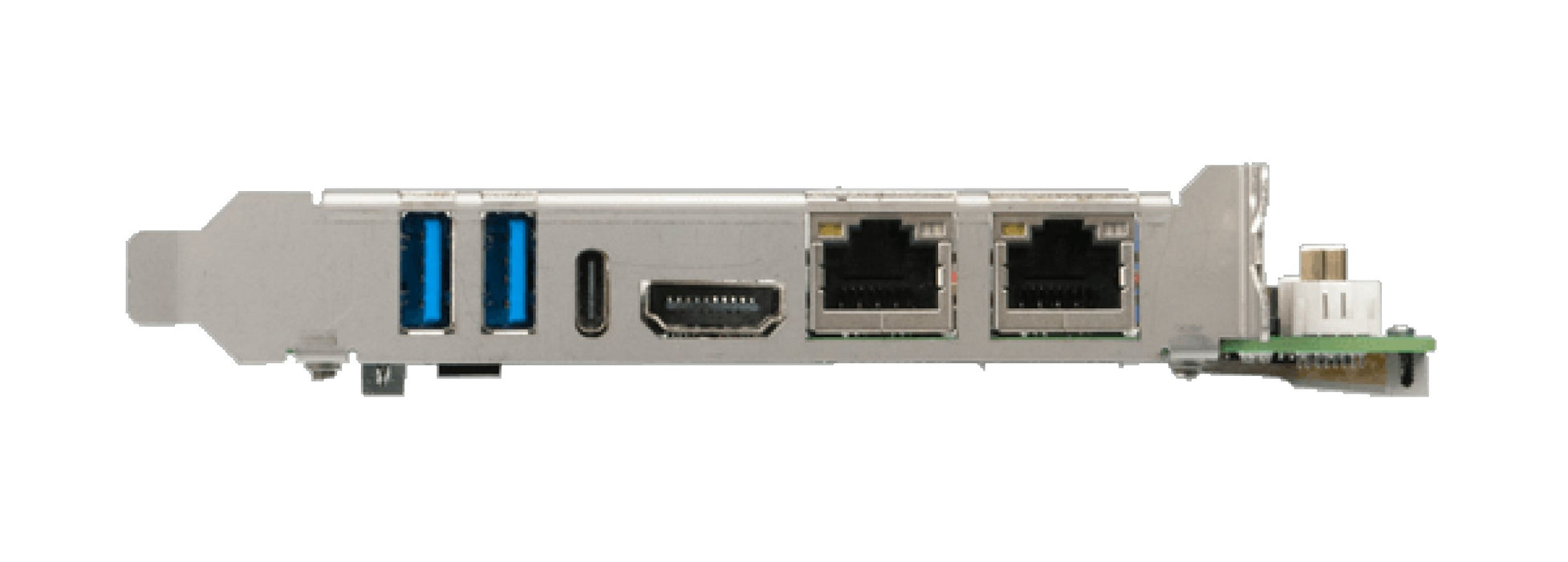

| Connectors | HDMI, 2xRJ45 Ethernet, 2xUSB, USB type C |
Software | |
| Operating System Compatibility | Windows 10 |
Dimensions and weight | |
| Width | 338 mm |
| Length | 126 mm |
Operating Conditions | |
| Operating Temperature | 0...60 °C |
