System Architecture | |

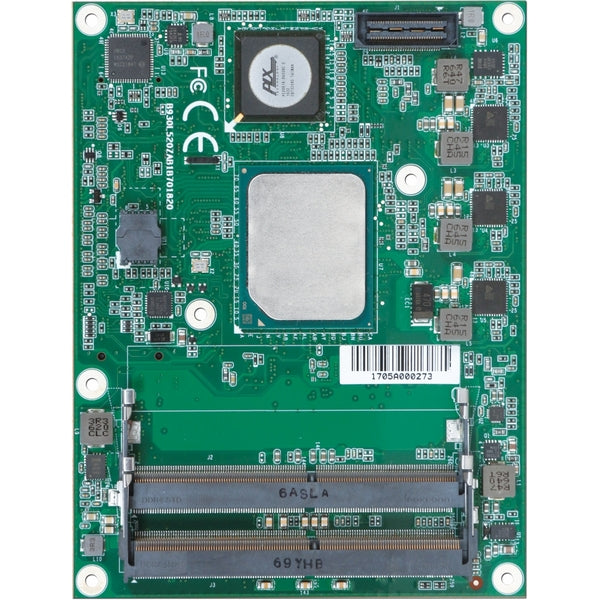

| Form Factor | COM Express CPU Module |
Construction | |
| Type | Fanless |
CPU | |
| Processor Installed | Intel Atom C3308 |
| Socket | CPU onboard |
| Max CPU frequency | 2.1 GHz |
| Number of CPU | 1 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 3xSODIMM |
| ECC | Yes |
| Maximum Memory | 48 GB |
| Assembly | Removable |
Ethernet | |
| Controller Type | Intel i210-IT |
| Total Ethernet | 5 |
| 10/100/1000 Mbit/s | 1 |
| 10 Gbit/s | 4 |
Interfaces | |
| USB Total | 4 |
| USB v3.x | 4 |
Extension Slots | |
| PCI Express x8 | 1 |
| PCI Express x1 | 12 |
Software | |
| Operating System Compatibility | Windows 7, Windows 8, Linux OS, Windows 8.1, Windows 10 |
Dimensions and weight | |
| Width | 125 mm |
| Length | 95 mm |
Operating Conditions | |
| Operating Temperature | 0...60 °C |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
