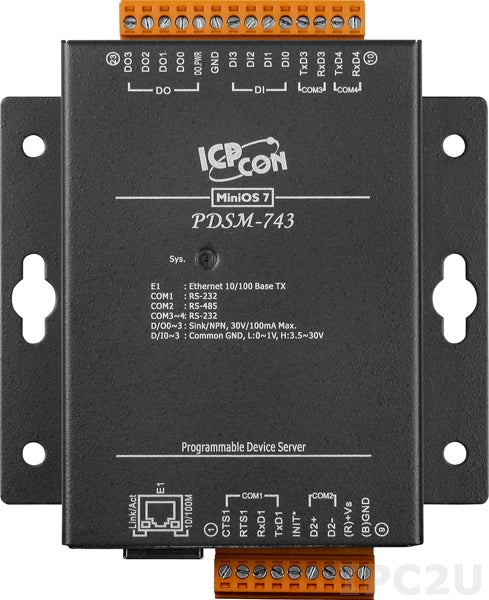

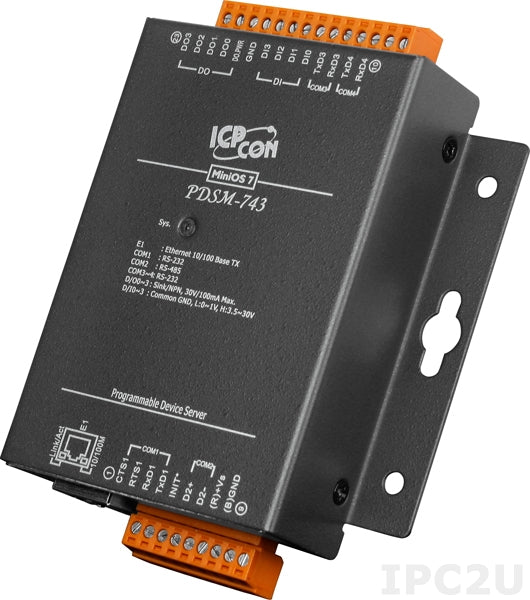

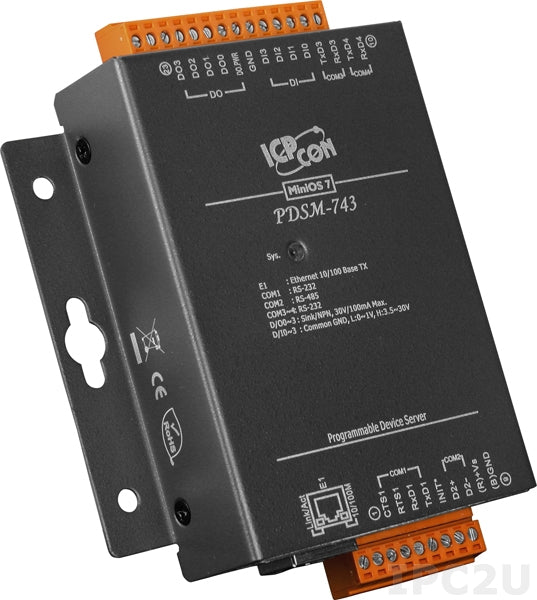

PDSM-743

Name: PDSM-743
Brand: ICP DAS
SKU: 05756400
Availability: InStock

ICP DAS

Ціна за запитом

Programmable Device Server with three RS-232, one RS-485, four DI and four DO ports with Metal Case

Специфікація

Specification

Ethernet
10/100 Mbit/s	1
Interfaces
COM Total	4
RS-232	3
RS-485	1
Digital Input
Total channels of digital input	4
Level of Logic "1"	3.5~30 V
Level of Logic "0"	0~1 V
Type	Wet contact
Digital Output
Total channels of digital output	4
Type	Open collector
Output voltage	5~30 V
Max. load current	100 mA
Connectors
Connectors	Screw Terminal
System Power Input
Input Voltage DC	10...30 V
Operating Conditions
Operating Temperature	-25...75 °C
Construction
Construction Chassis	Metal Chassis
Mounting Configuration	Wall, DIN-Rail mount
Dimensions and weight
Width	88 mm
Depth	28 mm
Height	123 mm
