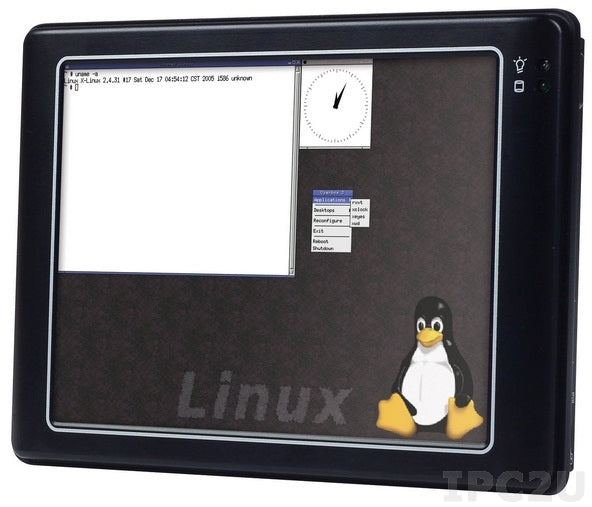

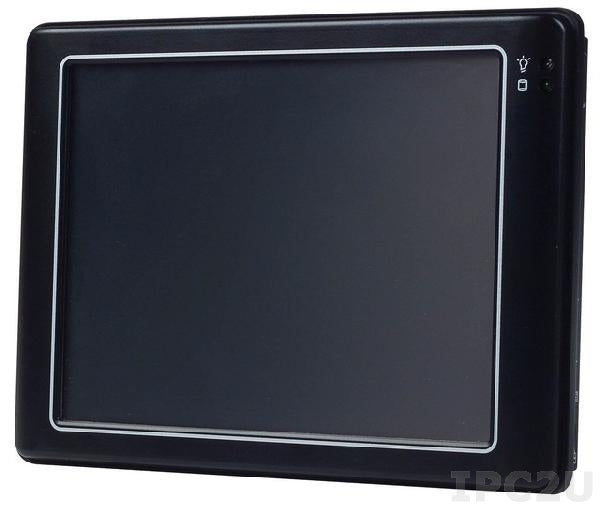

PDX-057T-RD5A

Ціна за запитом
5.7" Panel PC, Vortex86DX 1GHz CPU, 256MB DDR2 RAM, LAN, 2xUSB, RS232/422/485, Line-Out, Compact Flash Slot, MicroSD Slot, 20W Power Adapter

Specification

Construction

Construction ChassisHeavy-Duty Steel Chassis
Mounting ConfigurationPanel, Wall VESA 75
TypeFanless

Display

Display TypeLCD TFT
Diagonal5.7 "
Maximum resolution640x480 Dots
Brightness500 Cd/m2

Touch Screen

Touch Screen TypeResistive

CPU

Processor InstalledDM&P Vortex86DX
Max CPU frequency0.93 GHz

Memory

Form-factorDDR2
Default on Board Memory0.25 GB

Graphic

Graphic ControllerIntegrated in CPU

Ethernet

Controller TypeIntegrated with Chipset
Total Ethernet1
10/100 Mbit/s1

Wi-Fi

Wi-Fi StandardYes

Interfaces

COM Total1
RS-232/422/4851
USB Total2
USB 2.02

Audio

Audio ControllerCM119

Drive interfaces

CompactFlash Slots1
MicroSD1

Extension Slots

Total1
Mini-PCIe/Mini Card1

LED / Controls

LED1xOn/Off LED, Power LED
ControlsOn/Off

Additional Functions

Watchdog timer typeSoftware

Connectors

ConnectorsPS/2 Keyboard/Mouse, RJ45

System Power Input

Input Voltage DC5...5 V

Power Supply

Type of Power SupplyExternal power adapter AC/DC

Software

Operating System CompatibilityMS DOS, Windows CE 5.0, Windows CE 6.0, Windows XP, Linux OS

Dimensions and weight

Width152 mm
Height112 mm
Depth33 mm

Operating Conditions

Operating Temperature-20...60 °C

Standards and Certifications

CertificationsCE, FCC, VCCI

Files

Documentation

📄 Datasheet PDX-057T
