Construction | |
| Construction Chassis | Heavy-Duty Steel Chassis |
| Mounting Configuration | Panel, Wall VESA 75 |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |
Display | |

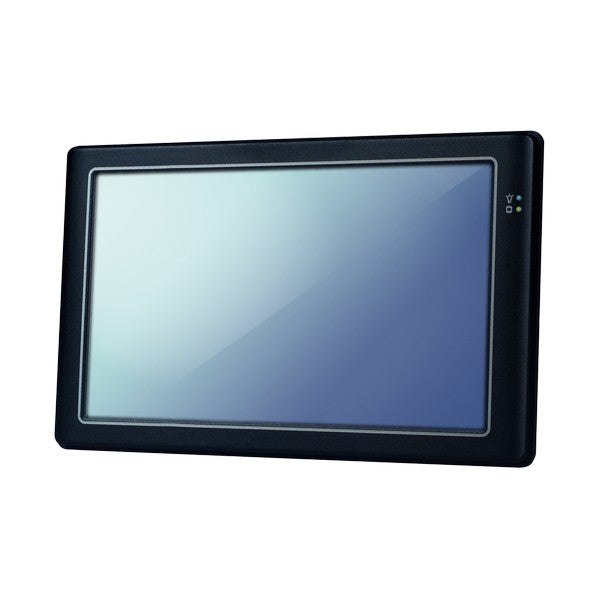

| Display Type | LCD TFT |
| Diagonal | 9 " |
| Maximum resolution | 1024x600 Dots |
| Aspect Ratio | 16:10 |
| Brightness | 300 Cd/m2 |
| Contrast Ratio | 500~1 |
Touch Screen | |
| Touch Screen Type | Resistive |
CPU | |
| Processor Installed | Vortex86DX3 |
| Max CPU frequency | 1 GHz |
Chipset | |
| Chipset | Vortex86 System-on-Chip |
Memory | |
| Form-factor | DDR3 |
| Default on Board Memory | 2 GB |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Integrated with Chipset |
| Total Ethernet | 1 |
| 10/100 Mbit/s | 1 |
Interfaces | |
| COM Total | 1 |
| RS-232/422/485 | 1 |
| USB Total | 2 |
| USB 2.0 | 2 |
Audio | |
| Audio Controller | Realtek ALC262 |
Drive interfaces | |
| CompactFlash Slots | 1 |
| MicroSD | 1 |
LED / Controls | |
| LED | 1xOn/Off LED, Power LED |
| Controls | On/Off |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

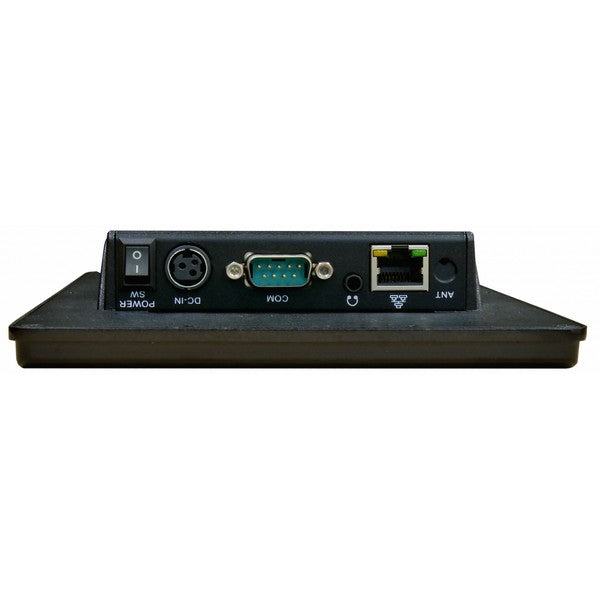

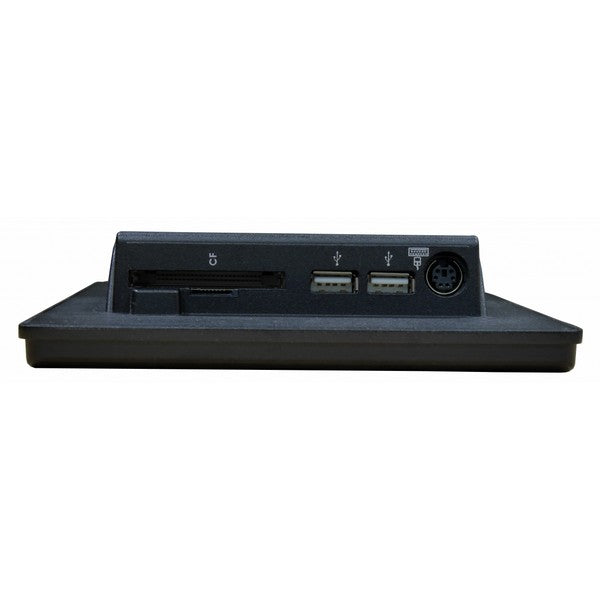

| Connectors | DB9, PS/2 Keyboard, RJ45 Ethernet, 2xUSB, Line Out, DC Input, SD card slot, CompactFlash |
System Power Input | |
| Input Voltage DC | 5...5 V |
| Power Consumption | 20 W |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
| Output Power | 20 W |
Software | |
| Operating System Compatibility | MS DOS, Windows CE 5.0, Windows CE 6.0, Windows XP, Windows 7, Linux OS |
Dimensions and weight | |
| Width | 236.6 mm |
| Height | 146 mm |
| Depth | 35 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
Standards and Certifications | |
| Certifications | CE, FCC, VCCI |
