Construction |
| Construction Chassis | Metal Chassis |

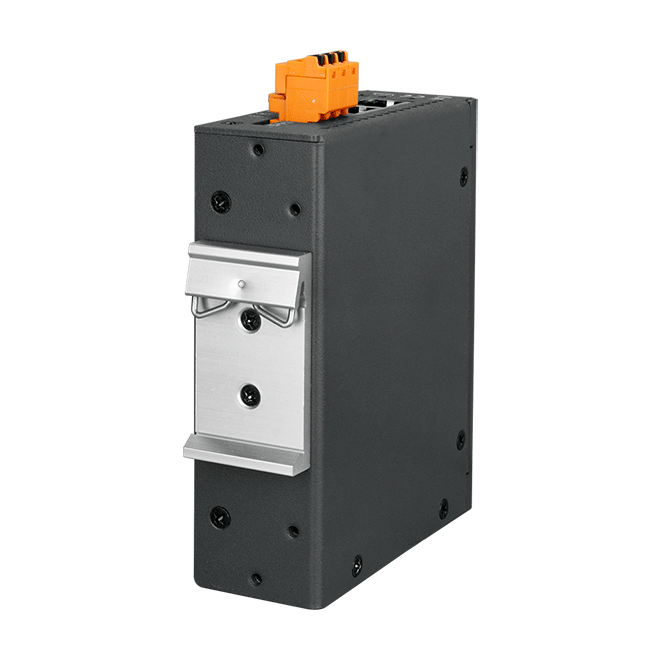

| Mounting Configuration | Wall, DIN-Rail mount |

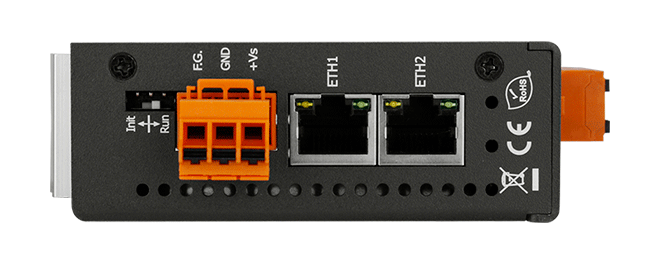

Ethernet |
| Total Ethernet | 2 |
| 10/100 Mbit/s | 2 |
Supported Protocols |
| Industrial Protocols | Modbus TCP server, Modbus UDP slave, MQTT |

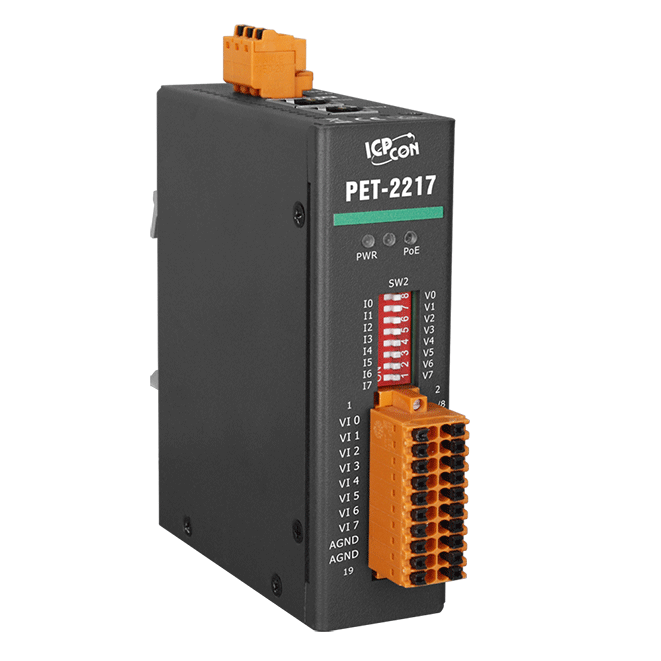

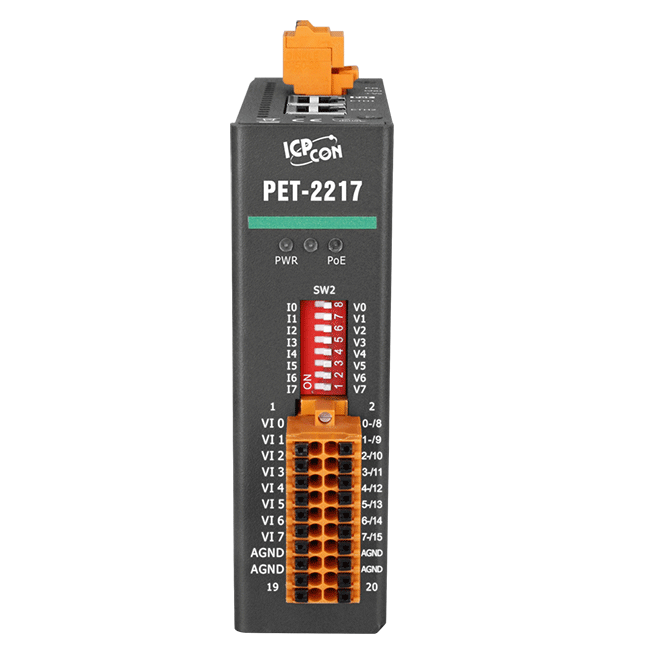

Analog Input |
| Total channels of analog input | 8 |
| Number of Bits | 16 Bit |
| Voltage range | +/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-2.5 V |
| Current range | 0...20 mA, 4...20 mA, -20...+20 mA |
| Sampling rate | 20 Hz |
| Single-Ended channels | 16 |
| Differential channels | 8 |
Additional Functions |
| Watchdog timer type | Hardware, Software |
System Power Input |
| Input Voltage DC | 10...48 V |
| Power over Ethernet (PoE) | PoE |
Dimensions and weight |
| Width | 33 mm |
| Depth | 127 mm |
| Height | 117 mm |
Operating Conditions |
| Operating Temperature | -25...75 °C |
| Humidity | 10-90% |
Standards and Certifications |
| EMS | IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5 |
