Construction | |
| Construction Chassis | Plastic Chassis |
| Mounting Configuration | Wall, DIN-Rail mount |

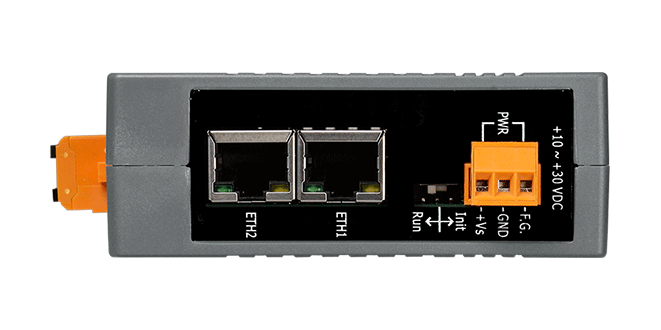

Ethernet | |
| 10/100 Mbit/s | 2 |
Supported Protocols | |
| Industrial Protocols | Modbus TCP server, Modbus UDP slave, MQTT |
Digital Input | |
| Total channels of digital input | 8 |
| Type | Dry contact, Wet contact |
| Level of Logic "0" | 0~1 V |
| Level of Logic "1" | 5~50 V |
| Sink/Source | Sink, Source |
| Isolation of Digital Input | 3000 V |
| Counter | 3KHz |
Digital Output | |
| Total channels of digital output | 8 |
| Type | Open collector |
| Sink/Source | Sink |
| Output voltage | 3.5~50 V |
| Max. load current | 650 mA |
Additional Functions | |
| Watchdog timer type | Hardware, Software |
System Power Input | |
| Input Voltage DC | 10...48 V |
| Power over Ethernet (PoE) | PoE |
Dimensions and weight | |
| Width | 33 mm |
| Depth | 127 mm |
| Height | 108 mm |
Operating Conditions | |
| Operating Temperature | -25...75 °C |
| Humidity | 10-90% |
Standards and Certifications | |
| EMS | IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5 |
