PET-7042

Name: PET-7042
Brand: ICP DAS
SKU: 06132400
Availability: InStock

ICP DAS

Ціна за запитом

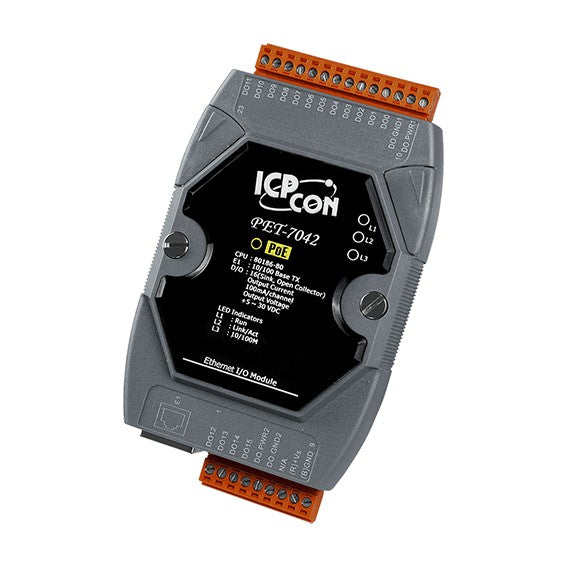

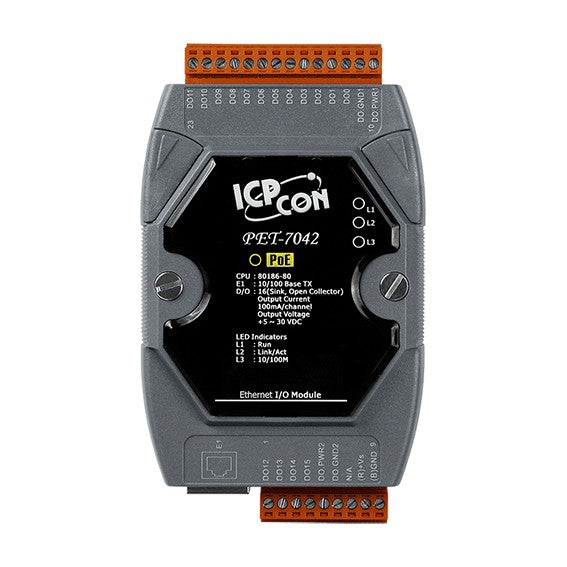

16-channel Isolated Sink Type Open Collector Digital Output PoE Module (RoHS)

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	Wall, DIN-Rail mount
Ethernet
10/100 Mbit/s	1
Supported Protocols
Industrial Protocols	Modbus TCP server, Modbus UDP slave
Digital Output
Total channels of digital output	16
Type	Open collector
Sink/Source	Sink
Output voltage	5~30 V
Max. load current	100 mA
Additional Functions
Watchdog timer type	Hardware, Software
System Power Input
Input Voltage DC	12...48 V
Power over Ethernet (PoE)	PoE
Dimensions and weight
Width	72 mm
Depth	35 mm
Height	123 mm
Operating Conditions
Operating Temperature	-25...75 °C
Standards and Certifications
EMS	IEC 61000-4-2, IEC 61000-4-4
