PET-7245

Name: PET-7245
Brand: ICP DAS
SKU: 08332200
Availability: InStock

ICP DAS

Ціна за запитом

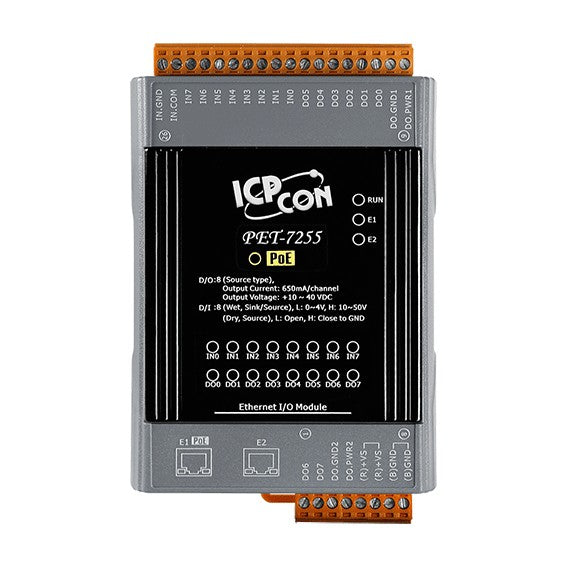

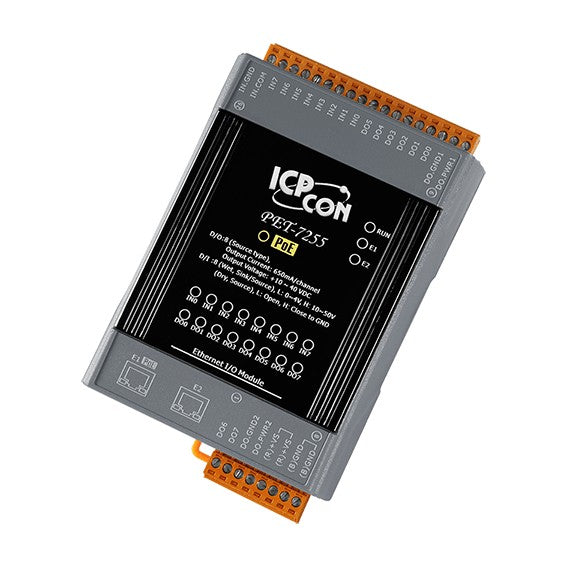

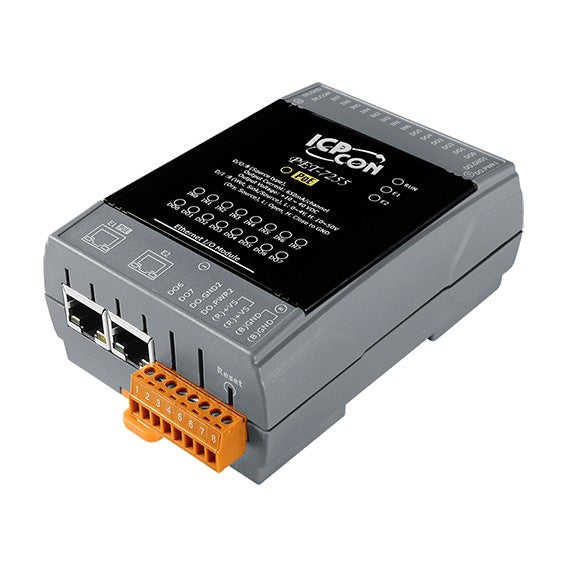

Ethernet I/O Module with 2-port Ethernet Switch, with 16-channels Source-type DO (RoHS), -25...75C, PoE

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	Wall, DIN-Rail mount
Ethernet
10/100 Mbit/s	2
Supported Protocols
Industrial Protocols	Modbus TCP server, Modbus UDP slave
Digital Output
Total channels of digital output	16
Type	Open emmiter
Sink/Source	Source
Output voltage	10~40 V
Max. load current	600 mA
Connectors
Connectors	Screw Terminal
Additional Functions
Watchdog timer type	Hardware, Software
System Power Input
Input Voltage DC	12...48 V
Power over Ethernet (PoE)	PoE
Dimensions and weight
Width	76 mm
Depth	38 mm
Height	120 mm
Operating Conditions
Operating Temperature	-25...75 °C
Standards and Certifications
EMS	IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
