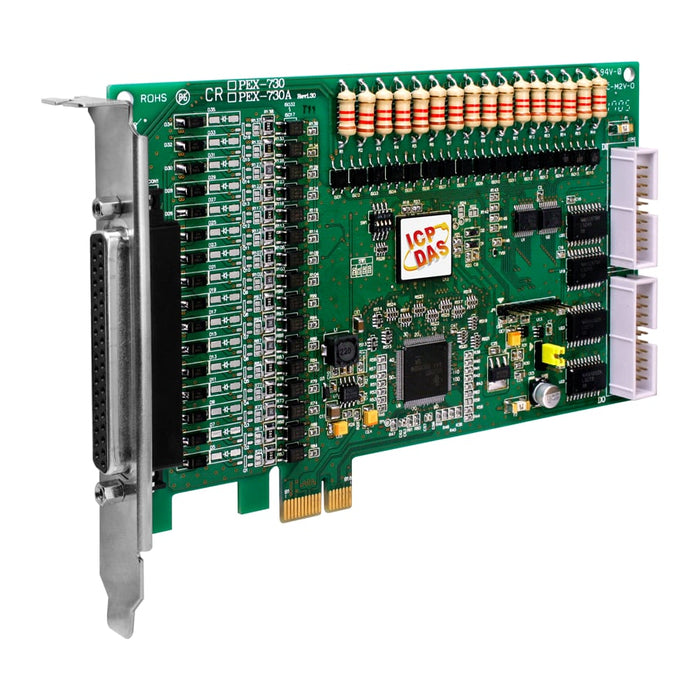

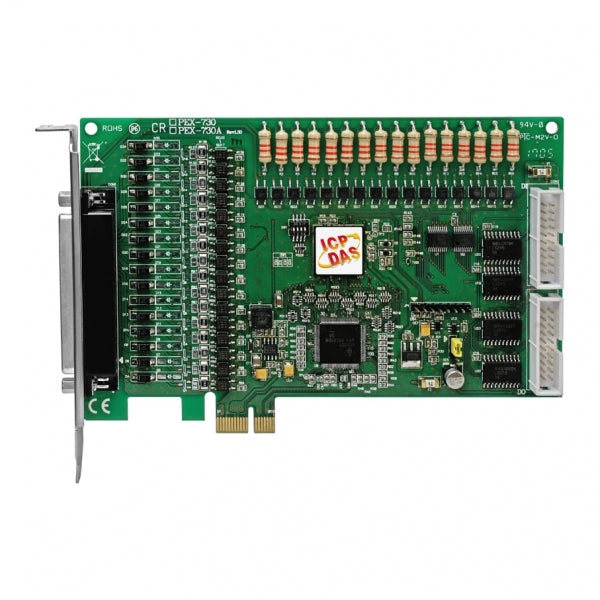

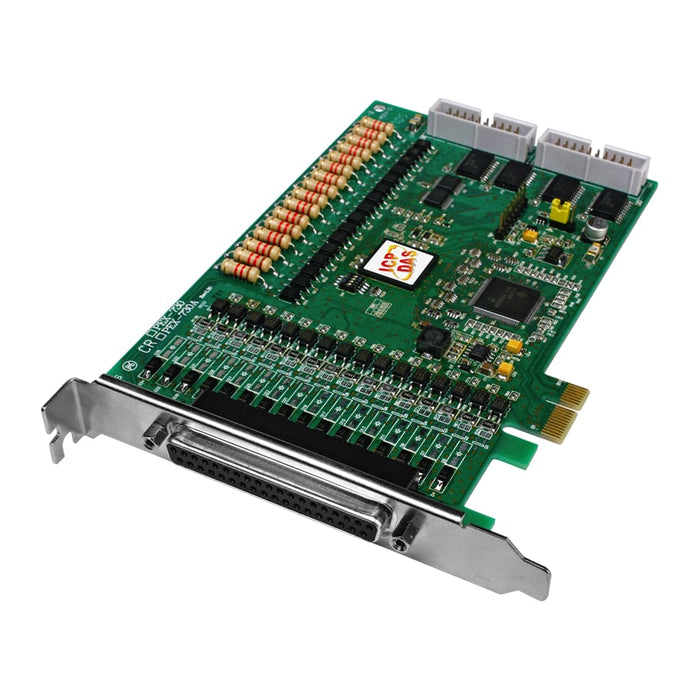

PEX-730A

Name: PEX-730A
Brand: ICP DAS
SKU: 07548500
Availability: InStock

ICP DAS

Ціна за запитом

PCI Express x 1 Isolated 16DI, 16DO, Non-Isolated TTL 16DI, 16DO Card

Специфікація

Specification

System Architecture
System Bus	PCI-Express x1
Digital Input
Total channels of digital input	32
Isolation of Digital Input	3750 V
Level of Logic "0"	0~1 V
Level of Logic "1"	9~24 V
Digital Output
Total channels of digital output	32
Type	Open collector
Sink/Source	Source
Output voltage	0~30 V
Max. load current	100 mA
Connectors
Internal Ports	2x20-pin box header
Connectors	DB37 Female
Software
Operating System Compatibility	Linux kernel 2.6, Windows XP, Windows 7, Windows 8, Windows Vista
Development Software	VC, VB, Delphi, BCB, LabVIEW
Operating Conditions
Operating Temperature	0...60 °C

Документація
