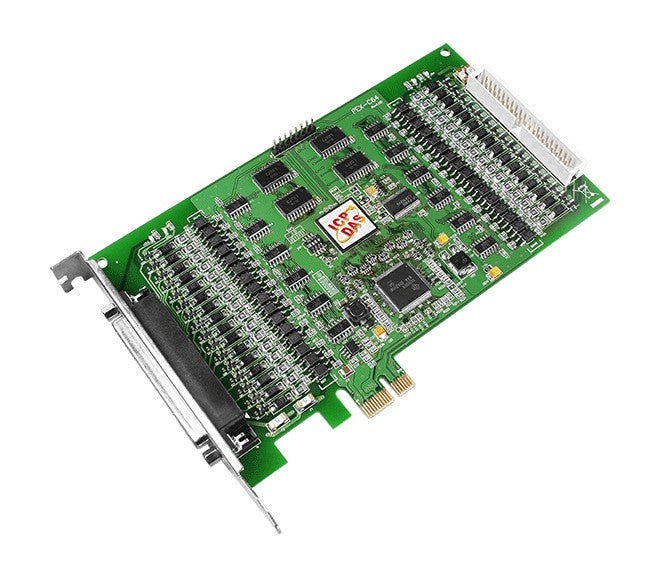

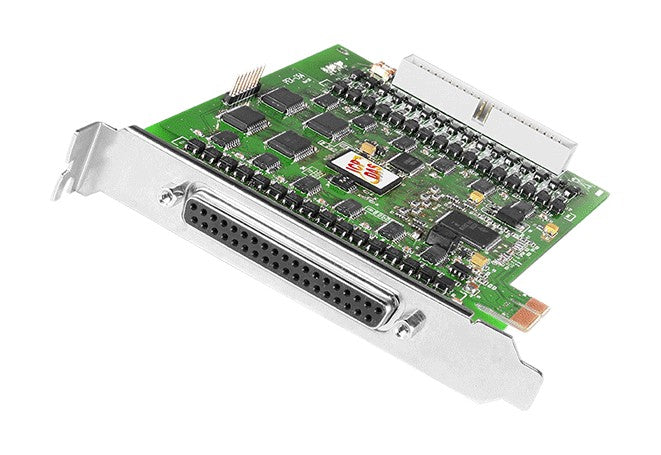

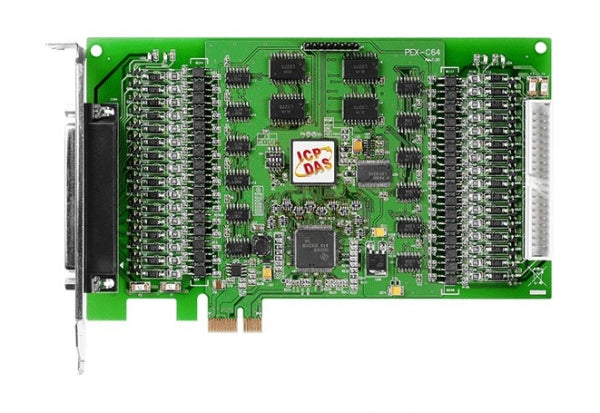

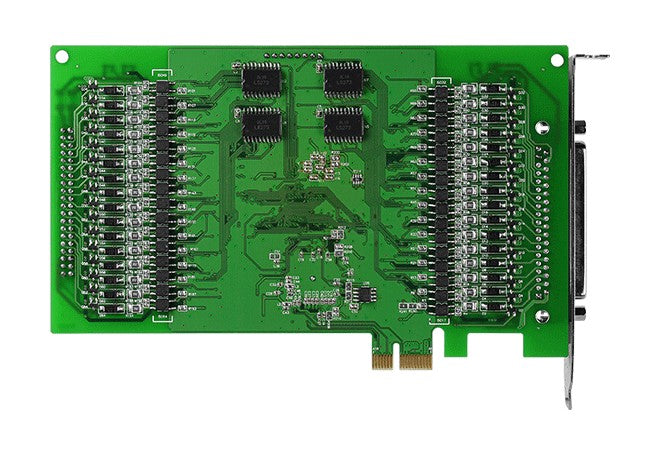

PEX-C64

Name: PEX-C64
Brand: ICP DAS
SKU: 06505100
Availability: InStock

ICP DAS

Ціна за запитом

PCI Express x 1 Isolated 64 OC DO Card, Adapter CA-4037x1, Cable Socket CA-4002x2

Специфікація

Specification

System Architecture
System Bus	PCI-Express x1
Digital Output
Total channels of digital output	64
Type	Open collector
Sink/Source	Sink
Output voltage	0~30 V
Max. load current	100 mA
Connectors
Internal Ports	40-pin box header
Connectors	DB37 Female
Cables
Included Cables	CA-4037B
Software
Operating System Compatibility	Linux kernel 2.6, Windows XP, Windows 7, Windows 8, Windows Vista
Development Software	VC, VB, Delphi, BCB, LabVIEW
Operating Conditions
Operating Temperature	0...60 °C
