PEX-P64

Name: PEX-P64
Brand: ICP DAS
SKU: 06505200
Availability: InStock

ICP DAS

Ціна за запитом

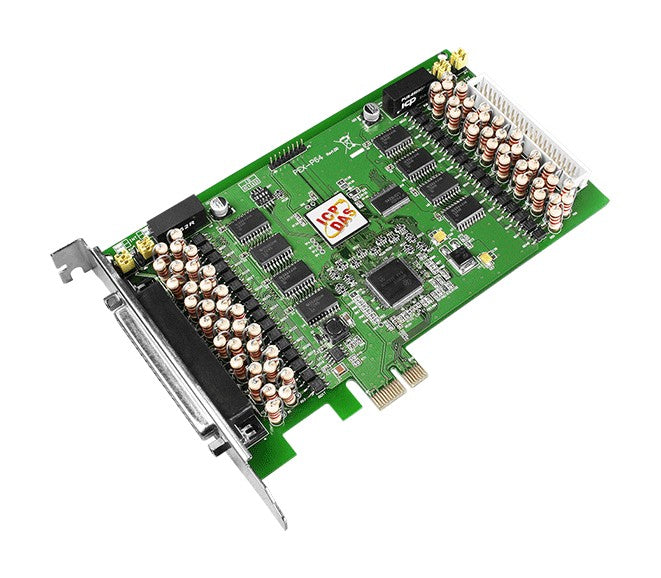

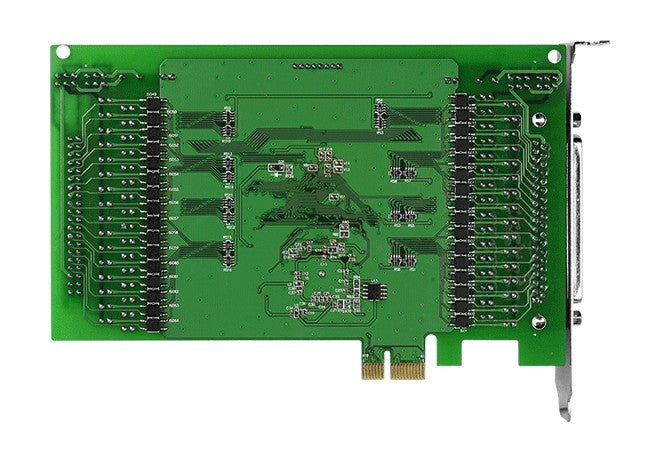

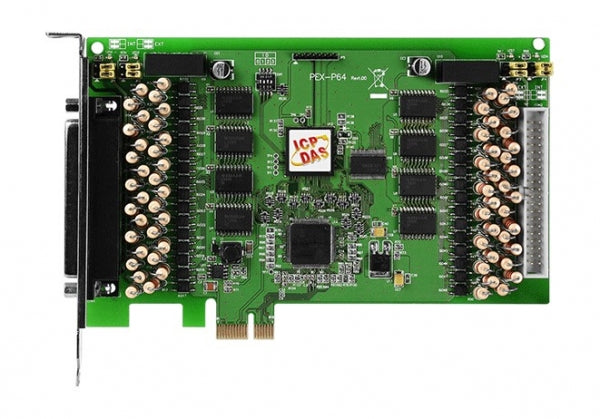

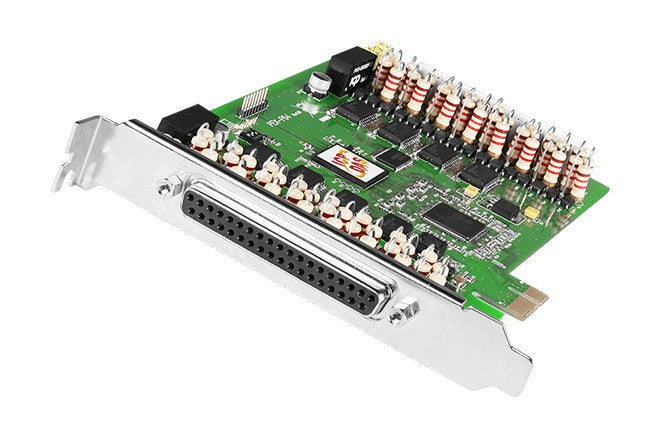

PCI Express x 1 Isolated 64DI Board, Adapter CA-4037x1, Cable Socket CA-4002x2

Специфікація

Specification

System Architecture
System Bus	PCI-Express x1
Digital Input
Total channels of digital input	64
Isolation of Digital Input	3750 V
Level of Logic "0"	0~1 V
Level of Logic "1"	5~15 V
Connectors
Internal Ports	40-pin box header
Connectors	DB37 Female
Software
Operating System Compatibility	Linux kernel 2.6, Windows XP, Windows 7, Windows 8, Windows Vista
Development Software	VC, VB, Delphi, BCB, LabVIEW
Operating Conditions
Operating Temperature	0...60 °C

Документація
